Nguồn gốc:
An Huy, Trung Quốc
Hàng hiệu:
WNK
Chứng nhận:
ISO9001:2015
Số mô hình:
WNK-SPS
Description

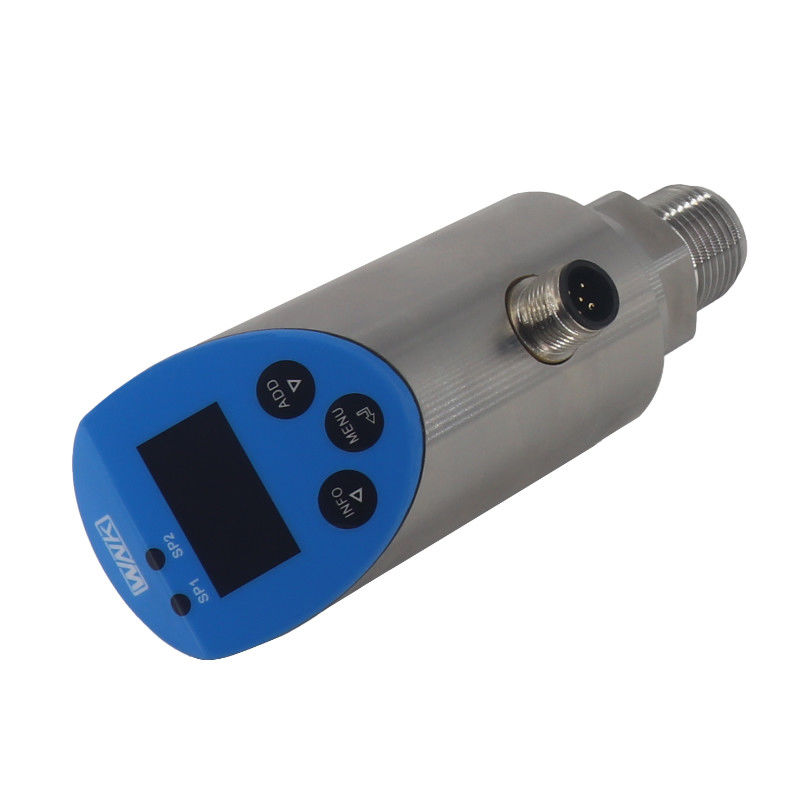

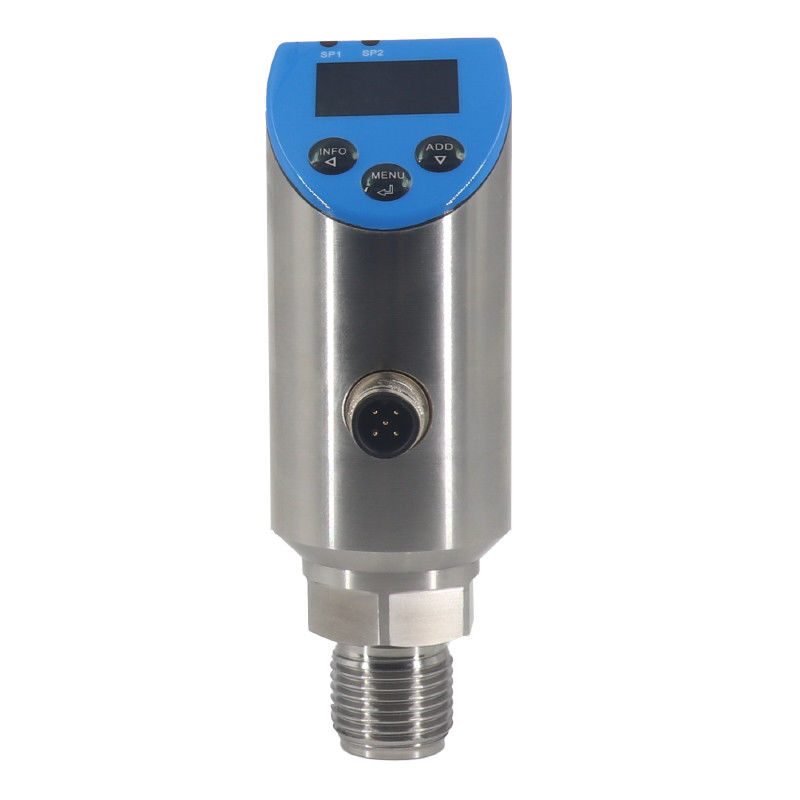

WNK-SPS OLED display pressure control switch Can provide a continuous pressure monitoring and set the pressure switching point without supercharging. User can easily set the switching point and back-to-switching point without supercharging equipment. And can define the switch type(normal open/close), damping time,the relay and NPN / PNP switch. The product can transfer the collected pressure signal into standard current and pressure signal output. The display and connection can rotate freely within 180 degrees so that it can be easily installed.
Applications
Gas-liquid dual-capable can be used in : pump control, storage tank monitor, liquid level control, filter blocking and monitor, leakage surveillance.
Industrial process testing and control
Self-controlled and constant-pressured water supply in building
Petrochemical, environmental protection, water conservancy, light industry, machinery, metallurgy
Measuring and control in other systems
Datasheet
|
Applicable media
|
Liquid, Gas, Steam
|
|
Pressure range
|
-100kPa~60MPa
|
|
Output Signal
|
2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
|
|
2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
|
|
|
Accuracy
|
0.5% FS
|
|
Stability
|
±0.3% FS/year
|
|
Switch current
|
1.0A(Max.)
|
|
Switching type
|
Normally open / closed (settable)
|
|
Display
|
OLED (Optional)
|
|
Housing material
|
304 stainless steel
|
|
Mechanical connection
|
M20×1.5; 1/2-18NPT, 1/4NPT, Customize
|
|
Storge temperature
|
－40～80℃
|
|
Process temperature
|
－30～80℃
|
|
Protection class
|
IP65
|
Company
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
