Nguồn gốc:
Trung Quốc
Hàng hiệu:
WNK
Chứng nhận:
CE Rohs
Số mô hình:
WNKSPS
The pressure switch SPS is designed for pressure monitoring and measure-ment in liquid and gaseous media. The SPS is suited for general industrial applications such as machine and plant engineering, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one and the same device.
1. Smart type, with PNP/NPN switching.
2. Swithing points settable, NO/NC availalbe
3. With OLED display, with 5 digit available.
4. Provide RS485 communication for option.
|

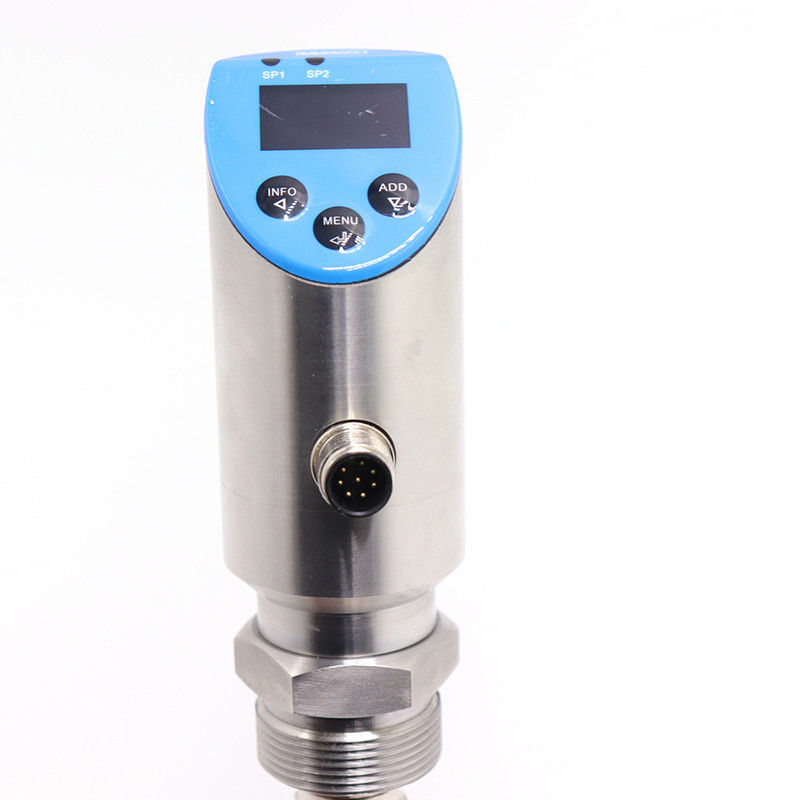

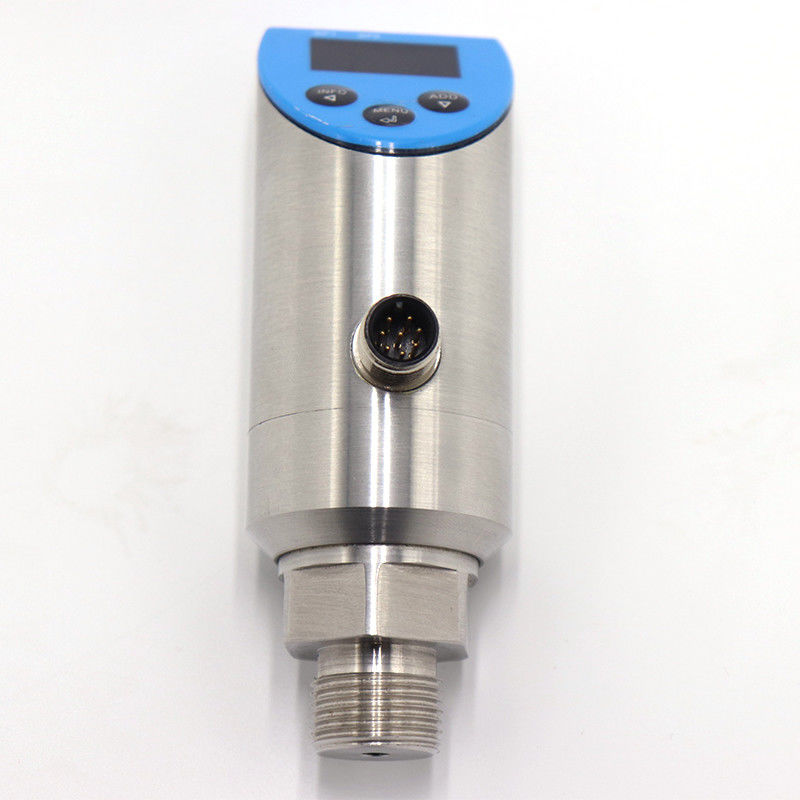

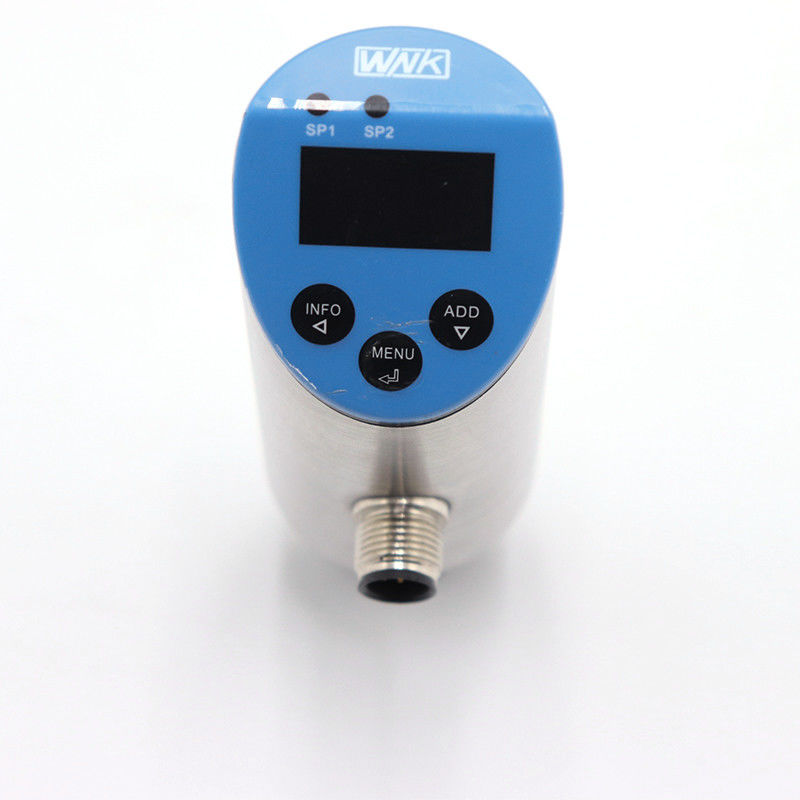

SPS Intelligent Electronic Pressure Switch with OLED Display
|
|
|
Applicable media
|
Liquid, Gas, Steam
|
|
Pressure measurment
|
Gauge Pressure, Absolute pressure
|
|
Pressure range
|
-100kPa~60MPa
|
|
Output Signal
|
2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
|
|
2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
|
|
|
Accuracy
|
0.5% FS
|
|
Stability
|
±0.3% FS/year
|
|
Switch current
|
1.0A(Max.)
|
|
Switching type
|
Normally open / closed (settable)
|
|
Display
|
OLED (Optional)
|
|
Housing material
|
304 stainless steel
|
|
Mechanical connection
|
M20×1.5; 1/2-18NPT, 1/4NPT, Customize
|
|
Storge temperature
|
-40~80℃
|
|
Process temperature
|
-30~80℃
|
|
Protection class
|
IP65
|
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
