Nguồn gốc:
Hợp Phì, CN
Hàng hiệu:
WNK
Chứng nhận:
SGS, ISO9001:2015
Số mô hình:
STS

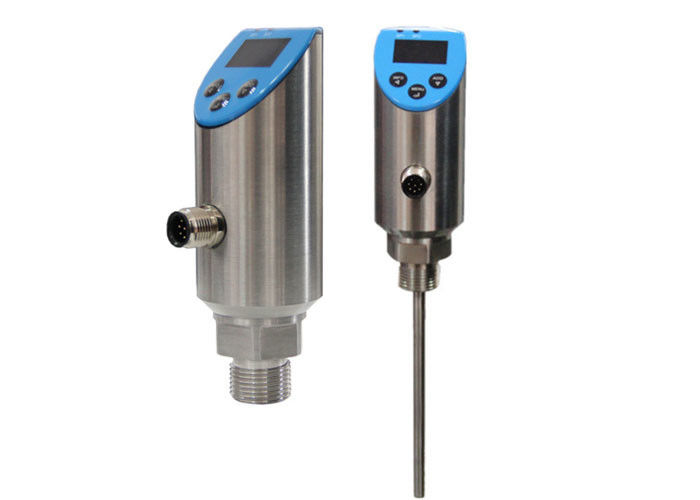

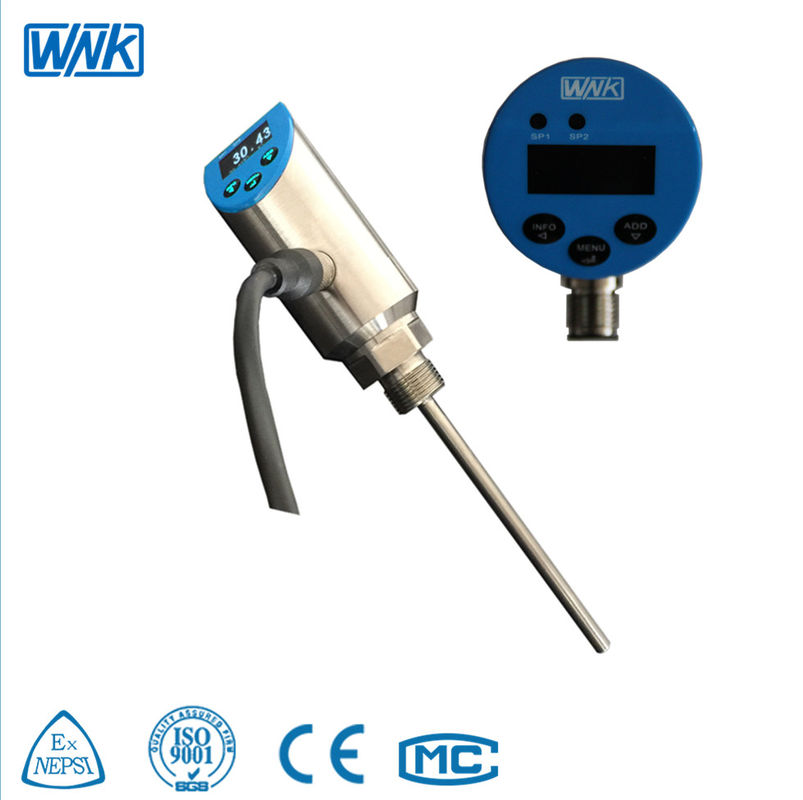

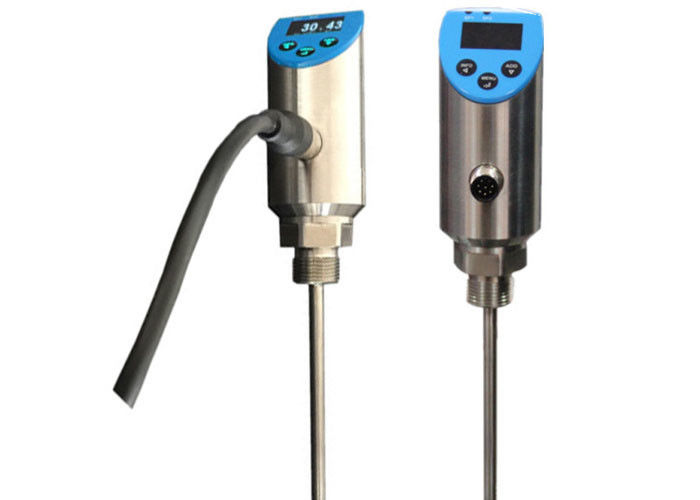

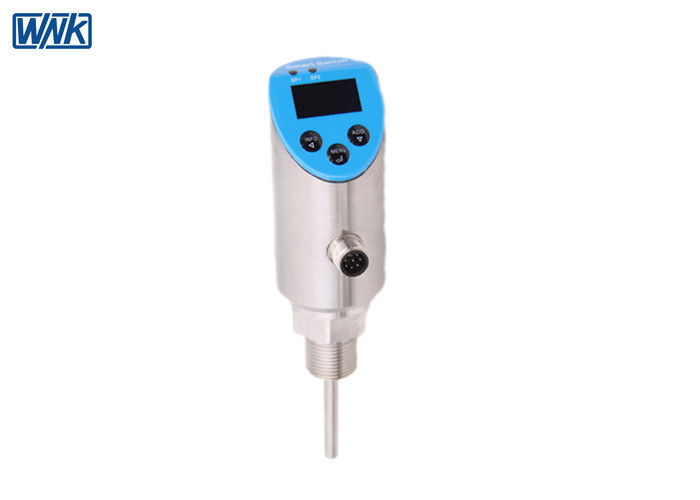

High Accuracy Industrial Automation Control Electronic Digital Temperature Switch 2PNP 4~20mA Modbus Output
Temperature switches are used in a variety of industrial and technical processes. If a preset temperature is reached, then the temperature switch opens or closes a corresponding switch contact.
WNK Smart Temperature Switch (STS ) supports PT100 or PT1000, it is with high measuring accuracy of 0.5℃. STS offers various functions including switch delay, switch point settable, display environment temperature, housing and display turnable and rotatable.
Applications:
Special Features
Technical Chart
| Product name | Electronic Smart Temperature Switch |
| Measuring range | -50...260ºC |
| Accuracy | ≤±0.5ºC |
| Supply power | 1230V DC |
| Temp. Measuring element | PT1000 |
| Reponse time | < 10ms |
| Temp. drift | ±0.15%/10K |
| Resolution | ±0.01ºC |
| Analog output accuracy | ≤±0.2%FS |
| Output configurations | 2×PNP + 0V~5VDC/10VDC + MODBUS |
| 2×PNP + 0mA/4mA~20mADC + MODBUS | |
| Switch current | 1.0A(Max.) |
| Switching type | Normally open / closed (settable) |
| Switching reponce time | <10ms |
| Swith delay | 0.00s~1000.0s |
| Switching motion mode | Delay or windows mode |
| Analog signal output and max ohmic load RL | Current output 0/4...20mA, 20...4mA RL≤0.5k |
| Voltage output 0...5/10v, 5/10...0v RL>10k | |
| Screen display | OLED |
| Menu language | Chinese and English |
| Switch indicating | 2 Red LED |
| Displaying units | ºC,ºF,K |
| Buttons | 3 blue back-lighted touch buttons |
| Supplementary variables displaying | Environment temperature, analog output value, max peak value,mini peak value |
| Supplementary variables displaying way | Fixed displaying or switch display by INFO button |
| Working temperature | -30-80ºC |
| Storage temperature | -40ºC~80ºC |
| Electromagnetism compatible | GB/T 17626.2/3/4-2006 |
| shock resistance | ≤10g/10Hz...500Hz(IEC 60068-2-6-2007) |
| vibration resistance | ≤50g/11ms(IEC 60068-2-27-2008) |
| Protection class | IP65 |
