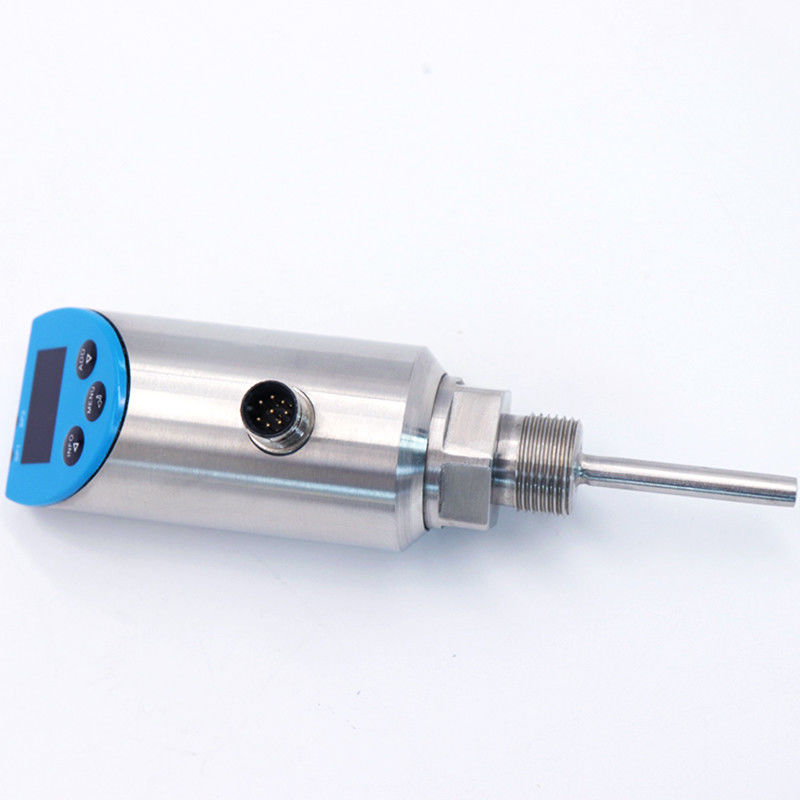

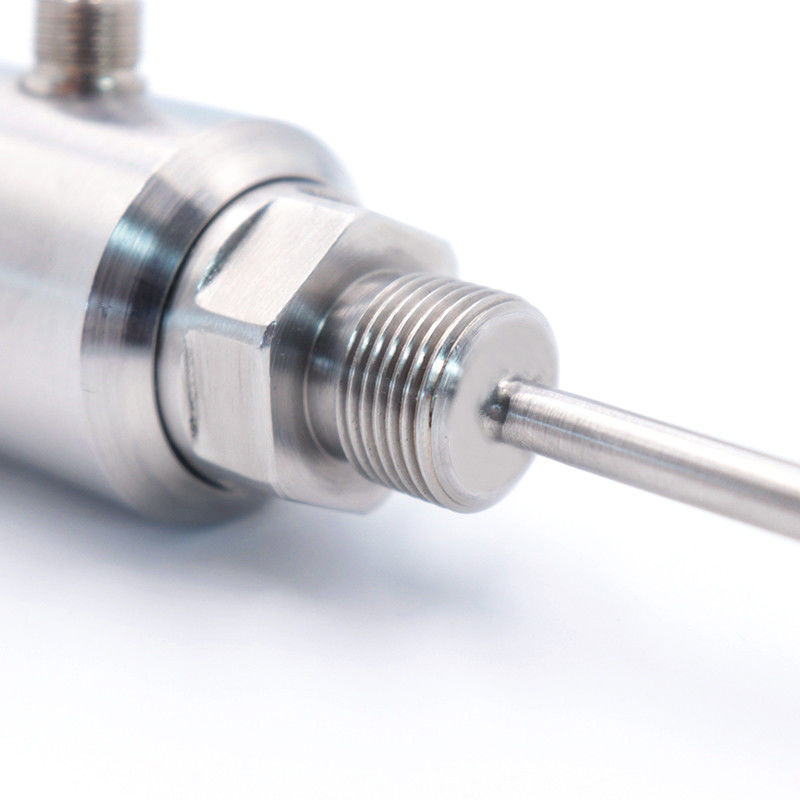

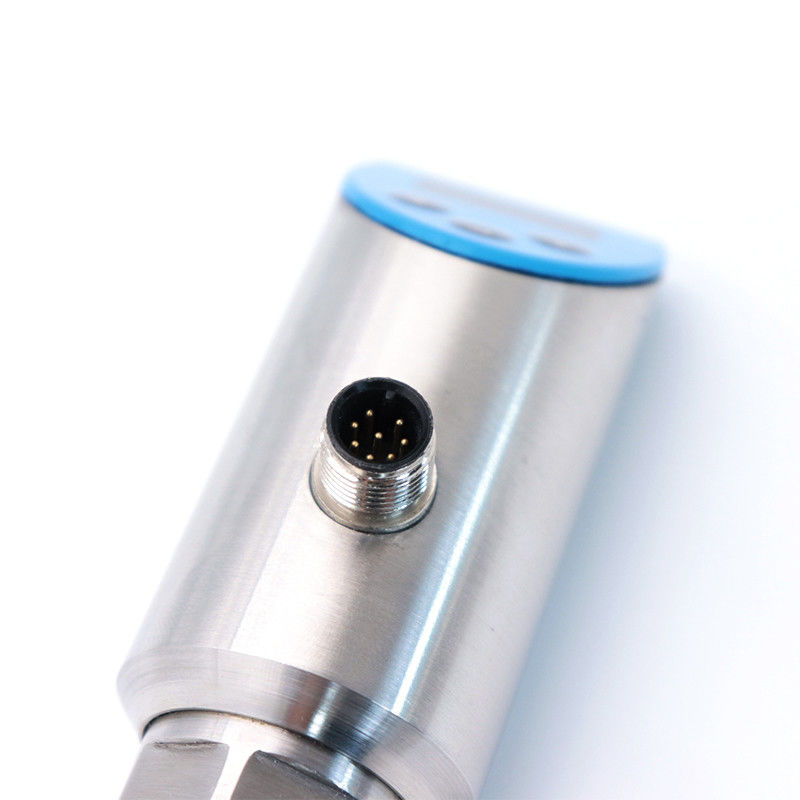

PT100 PT1000 Temperature Switch Water Pump Temperature Switch
Description
WNK temperature switch (STS) is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc. The STS provides optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.
Specifications
| Product name | Electronic Smart Temperature Switch |
| Measuring range | -50260ºC |
| Accuracy | ≤±0.5ºC |
| Supply power | 1230V DC |
| Temp. Measuring element | PT1000 |
| Reponse time | < 10ms |
| Temp. drift | ±0.15%/10K |
| Resolution | ±0.01ºC |
| Analog output accuracy | ≤±0.2%FS |
| Output configurations | 2×PNP + 0V~5VDC/10VDC + MODBUS |
| 2×PNP + 0mA/4mA~20mADC + MODBUS | |
| Switch current | 1.0A(Max.) |
| Switching type | Normally open / closed (settable) |
| Switching reponce time | <10ms |
| Swith delay | 0.00s~1000.0s |
Feature:
Technical Data:
| Product name | Electronic Smart Temperature Switch |
| Measuring range | -50260ºC |
| Accuracy | ≤±0.5ºC |
| Supply power | 1230V DC |
| Temp. Measuring element | PT1000 |
| Reponse time | < 10ms |
| Temp. drift | ±0.15%/10K |
| Resolution | ±0.01ºC |
| Analog output accuracy | ≤±0.2%FS |
| Output configurations | 2×PNP + 0V~5VDC/10VDC + MODBUS |
| 2×PNP + 0mA/4mA~20mADC + MODBUS | |
| Switch current | 1.0A(Max.) |
| Switching type | Normally open / closed (settable) |
| Switching reponce time | <10ms |
| Swith delay | 0.00s~1000.0s |
Ordering sheet:
Product Show
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
