Nguồn gốc:
An Huy, Trung Quốc
Hàng hiệu:
WNK
Chứng nhận:
ISO9001:2015
Số mô hình:
WNK-SLS

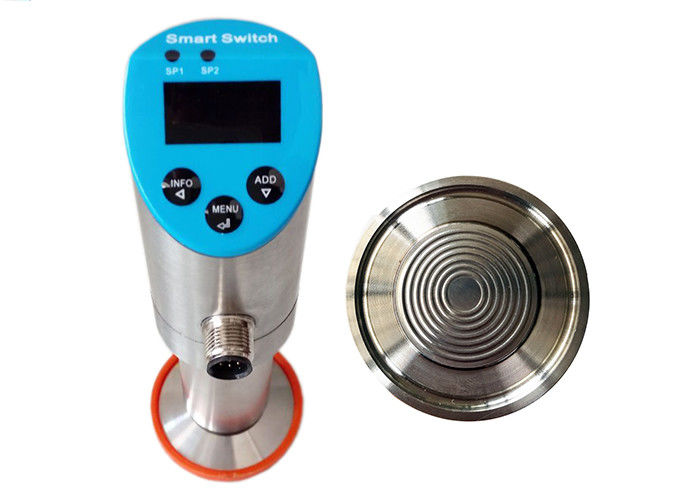

FEATURES
1. Gas and liquid pressure measurement
2. PNP switching, voltage and current outputs
3. Switching points settable
4. Switching can be set normally open / normally closed
5. Supporting Switching delay
6. Various analog output ways available
7. Displaying pressure peak value and environment temperature
8. Analog output span settable
9. OLED self-luminous display
10. Display turnable 180°
11. Housing with electrical connection against process connection rotatable 330°
12. Industrial touch button
13. Various display pressure units
14. Parameters setting up for Password protection
15. Support MODBUS communicatio
Applications
Gas-liquid dual-capable can be used in : pump control, storage tank monitor,
| Liquid Level Control Switch |
, filter blocking and monitor, leakage surveillance.
Industrial process testing and control
Self-controlled and constant-pressured water supply in building
Petrochemical, environmental protection, water conservancy, light industry, machinery, metallurgy
Measuring and control in other systems
Product Data Sheet
| Measuring range | -100kPa-60Mpa |
| Output signal | 4-20mA, 0.5-4.5VDC, Modbus-RTU/RS 485,PNP or NPN output, customer |
| Reference accuracy | ±0.1%URL |
| Field of application | Pressure, level measurement |
| Stability | ±0.2% URL/ 5 years |
| Diaphragm material | SUS316L, Hastelloy C |
| process connection | Standard G1/4, G1/2, M20*1.5, optional |
| Electrical connection | Aviation plug, M12*1 (5 pins) |
| Sensor seal | Stainless steel welding seal |
| Approvals | CE, Ex-proof |
| Working temperature | -40-85℃ |
| Storage temperature | -40-85℃ |
| Media temperature | Sensor with silicon oil filling -40-120℃ |
