Nguồn gốc:
An Huy, Trung Quốc
Hàng hiệu:
WNK
Chứng nhận:
ISO9001:2015
Số mô hình:
WNK-SLS
Description

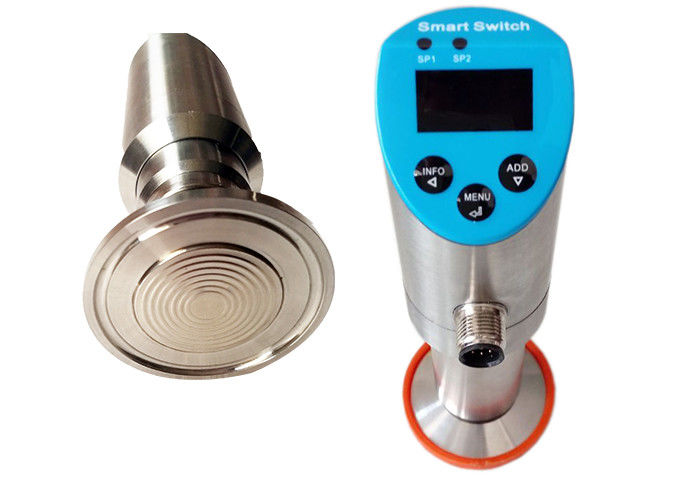

The pressure switch SPS is designed for pressure monitoring and measure-ment in liquid and gaseous media. The SPS is suited for general industrial applications such as machine and plant engineering, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one and the same device. In its standard configuration it has two switching outputs (PNP or NPN). In addition, there are configurations available with an analog output signal (0...20mA| 420 mA or 0...5V| 0...10 V) as well as with RS485 Link
Applications
Gas-liquid dual-capable can be used in : pump control, storage tank monitor, liquid level control, filter blocking and monitor, leakage surveillance.
Industrial process testing and control
Self-controlled and constant-pressured water supply in building
Petrochemical, environmental protection, water conservancy, light industry, machinery, metallurgy
Measuring and control in other systems
Product Data Sheet
| Measuring range | -100kPa-60Mpa |
| Output signal | 4-20mA, 0.5-4.5VDC, Modbus-RTU/RS 485,PNP or NPN output, customer |
| Reference accuracy | ±0.1%URL |
| Field of application | Pressure, level measurement |
| Stability | ±0.2% URL/ 5 years |
| Diaphragm material | SUS316L, Hastelloy C |
| process connection | Standard G1/4, G1/2, M20*1.5, optional |
| Electrical connection | Aviation plug, M12*1 (5 pins) |
| Sensor seal | Stainless steel welding seal |
| Approvals | CE, Ex-proof |
| Working temperature | -40-85℃ |
| Storage temperature | -40-85℃ |
| Media temperature | Sensor with silicon oil filling -40-120℃ |
