Nguồn gốc:
An Huy, Trung Quốc
Hàng hiệu:
WNK
Chứng nhận:
ISO9001:2015
Số mô hình:
WNK-SLS
Description

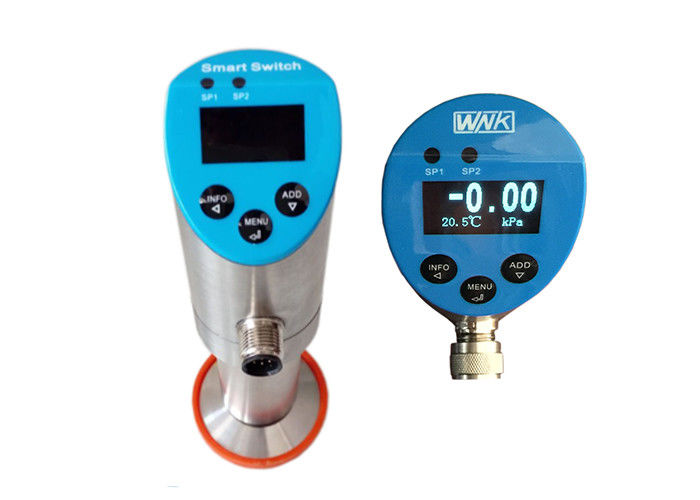

SPS is a pressure transmitter with a pressure switch to safely and absolutely measure and monitor gauge pressures. It is highly stable and has a function check and onsite information due to its OLED and digital display. It can be rotated up to 350° if placed on the upper part of the house, also the display contents can be rotated up and down.
Features:
1. highlighted OLED display, three kinds of displays modes flexible configuration
2. 350°rotatable display module
3. 180°rotatable display content
4. Variety of output signal with 4-20mA, 0.5~4.5V, RS485 Modbus-RTU, PNP or NPN
5. Storage and viewing functions of peak pressure data
6. Shortcut operations to realize PV=0 and factory restore functions
7. Independent air cavity design for moisture proof
8. Protection class IP67
Specifications
| Pressure types | Gauge pressure |
| Measuring range | 0-40Mpa |
| Output signal | 4-20mA, 0.5-4.5VDC, Modbus-RTU/RS 485,PNP or NPN output, customer |
| Reference accuracy | ±0.1%URL |
| Field of application | Pressure, level measurement |
| Stability | ±0.2% URL/ 5 years |
| Diaphragm material | SUS316L, Hastelloy C |
| process connection | Standard G1/4, G1/2, M20*1.5, optional |
| Electrical connection | Aviation plug, M12*1 (5 pins) |
| Sensor seal | Stainless steel welding seal |
| Approvals | CE, Ex-proof |
| Working temperature | -40-85℃ |
| Storage temperature | -40-85℃ |
| Media temperature | Sensor with silicon oil filling -40-120℃ |
| Working humidity | 0-95%RH@40℃ |
| Protection class | IP67 |
