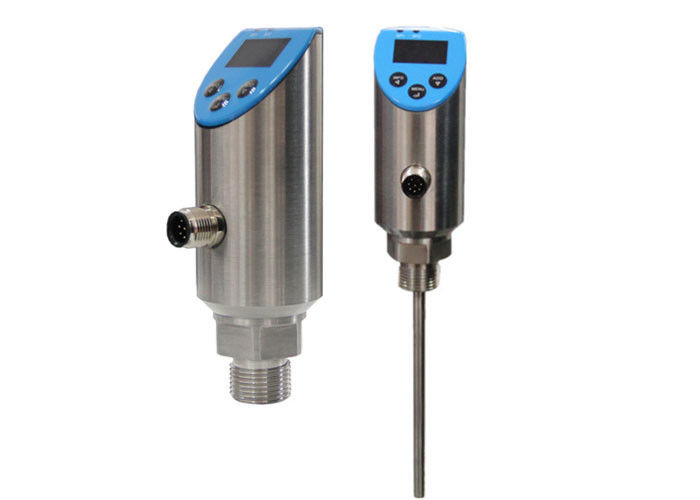

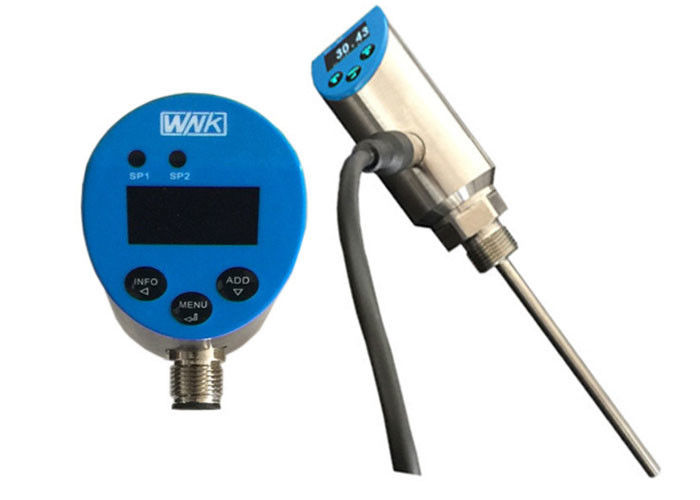

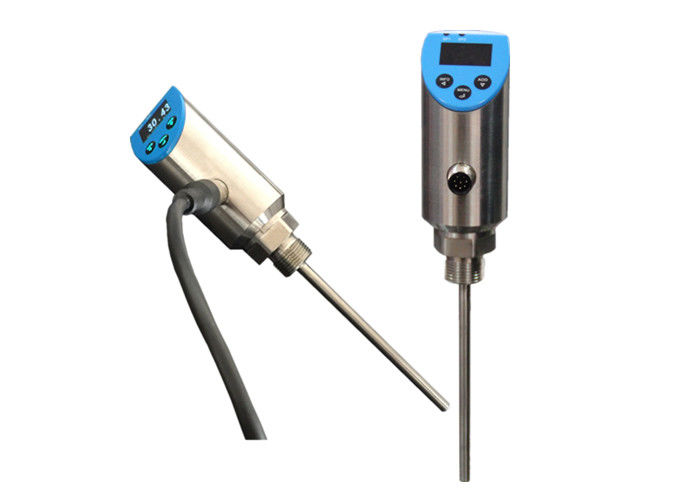

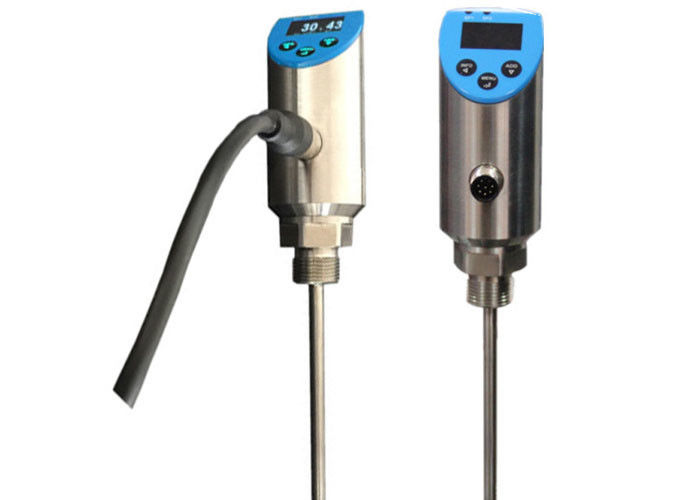

Smart PT100 Temperature Switch with 4~20mA+2 PNP Output

Smart PT100 Temperature Switch with 4~20mA+2 PNP Output

The temperature switch STS is robustly designed and very easy to use. The STS is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc. It is temperature switch, transmitter and display in one and the same device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.

The temperature switch STS takes the high integrated ARM industrial-grade MCU as the core. The STS ensures fast-speed and precise temperature measurement and switch movement by carefully adjustment and combining high-precision AD switch and high stabile pressure sensor. The setup using the three big back-lighted buttons and the display on machine make it very easy for on-site parameters setting.

Quick Information:

• Temperature measurement in various occasions
• Support MODBUS
• PNP switching, voltage and current outputs
• Switching points settable
• Switching can be set normally open / normally closed
• Supporting Switching delay
• Various analog output ways available
• Displaying temperature peak value and environment temperature
• Analog output span settable
• OLED self-luminous display
• Display reversing 180°
• Housing with electrical connection against process connection rotatable 330°
• Parameters setting for Password protection

Detailed Technical Info:

Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
