Name: WNK Submersible Hydrostatic Deep Well Water Level Sensor 4 - 20ma 0- 10V
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-T1
Price: 417.00 USD
Availability: InStock

Trang chủ > các sản phẩm > Submersible Level Sensor >

WNK Submersible Hydrostatic Deep Well Water Level Sensor 4 - 20ma 0- 10V

WNK Submersible Well Water Level Sensor

0-10V Well Water Level Sensor

IP68 Well Water Level Sensor

Nguồn gốc:

Hợp Phì, TRUNG QUỐC

Hàng hiệu:

WNK

Chứng nhận:

CE, Rhos

Số mô hình:

WNK8010-T1

Liên hệ với chúng tôi

Yêu cầu Đặt giá

Product Details

Sự chính xác:

0,25%, 0,5%, 1,0% FS

đầu ra:

4-20mA, 0-5V, 1-5V, tùy chỉnh

phạm vi thoải mái:

0-0,5 ~ 200mH2O

Quá tải tối đa:

150% phạm vi cảm biến

Vật liệu nhà ở:

thép không gỉ

Lớp bảo vệ:

IP68

Làm nổi bật:

WNK Submersible Well Water Level Sensor

0-10V Well Water Level Sensor

IP68 Well Water Level Sensor

Payment & Shipping Terms

Số lượng đặt hàng tối thiểu

mỗi cái 1 cái

Giá bán

negotiable

chi tiết đóng gói

Bao bì tùy chỉnh, Đóng gói xứng đáng với đường biển

Thời gian giao hàng

5-7 ngày làm việc

Điều khoản thanh toán

Liên minh phương Tây, Moneygram, T/T, PayPal

IP68 Stainless steel Dirty Water Submersible Level Sensor

Nhận được giá tốt nhất

Băng hình

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

Nhận được giá tốt nhất

Băng hình

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

Nhận được giá tốt nhất

Băng hình

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

Nhận được giá tốt nhất

Liên hệ với chúng tôi

Liên hệ ngay

Product Description

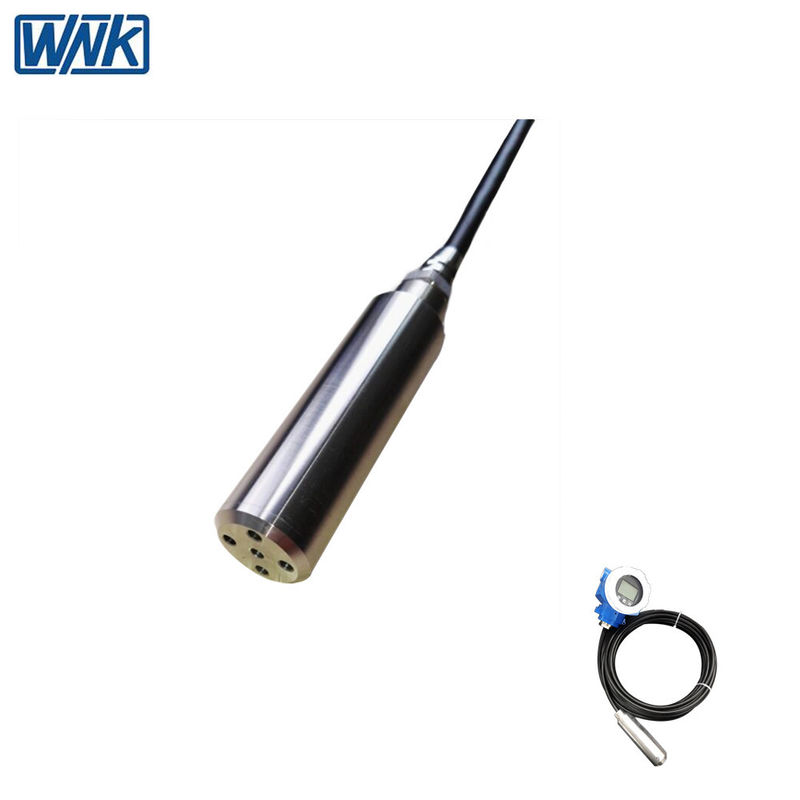

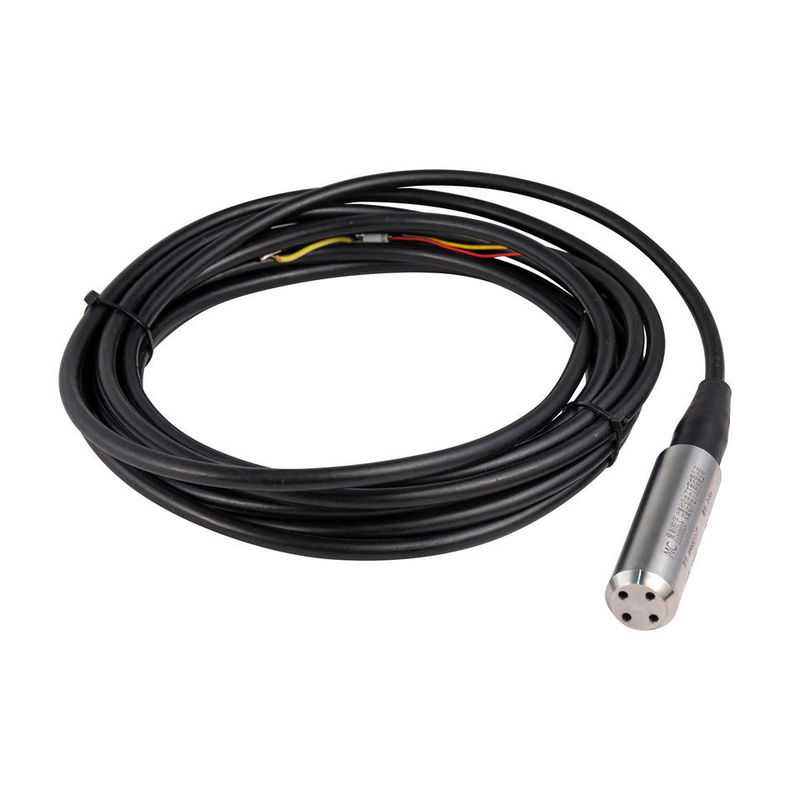

WNK Submersible 4-20ma 0-10V 0-200m Range Hydrostatic Deep Well Water Level Sensor

Product Description

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Applicable Media	Liquid, Water
Accuracy	≤ ±0.2%FS,
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of
ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure
transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to
0.25%FS/Year with high protection of IP68.

Applications
• Water tank level measurement and control.

• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by

customized.)

Features

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price

Ordering Code
Dimensions - IP68 Sumbersible Liquid Level Sensor
