Name: Food Grade Sanitary Flush Industrial Pressure Transmitter 4-20mA Output
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK805
Price: 403.00 USD
Availability: InStock

Trang chủ > các sản phẩm > Sanitary Pressure Sensor >

Food Grade Sanitary Flush Industrial Pressure Transmitter 4-20mA Output

Hygienic Industrial Pressure Transmitter

Food Grade Sanitary Pressure Sensor

4-20mA Industrial Pressure Transmitter

Nguồn gốc:

Hợp Phì, CN

Hàng hiệu:

WNK

Chứng nhận:

CE, SGS, ISO9001, NEPSI

Số mô hình:

WNK805

Liên hệ với chúng tôi

Yêu cầu Đặt giá

Product Details

Phương tiện áp dụng:

Khí, Nước, Chất Lỏng

Phạm vi:

0-0.2 ~ -100kPa; 0-0,2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa 0-0,2 ~ 1000kPa 6

Độ chính xác tuyến tính:

00,5% FS 0,25% FS

kiểu:

Máy đo, tuyệt đối, âm

Nhiệt độ làm việc:

-40 ～ 85oC

Kết nối điện:

Đầu nối Hirschmann

Bằng chứng:

IP67

Quyền lực:

24VDC, 12-32V

Làm nổi bật:

Hygienic Industrial Pressure Transmitter
,
Food Grade Sanitary Pressure Sensor
,
4-20mA Industrial Pressure Transmitter

Payment & Shipping Terms

Số lượng đặt hàng tối thiểu

1 mảnh

Giá bán

negotiable

chi tiết đóng gói

Đóng gói xứng đáng với đường biển hoặc đóng gói đáng giá trên không

Thời gian giao hàng

5-8 ngày làm việc

Điều khoản thanh toán

T/T, Công Đoàn Phương Tây

Khả năng cung cấp

5000 CÁI mỗi tháng

RELATED PRODUCTS

Băng hình

DIN43650 M12 Cable Hygienic Sanitary Pressure Transducer

Nhận được giá tốt nhất

Băng hình

Medical Flat Membrane Sanitary Pressure Sensor , Flush Diaphragm Pressure Transmitter

Nhận được giá tốt nhất

Băng hình

High Temperature Pressure Sensor 120 Deg 4~20mA With Flush Diaphragm

Nhận được giá tốt nhất

Băng hình

Hirschman Tri-clamp Sanitary Pressure Transmitter 4~20mA for Food Medical

Nhận được giá tốt nhất

Liên hệ với chúng tôi

Liên hệ ngay

Product Description

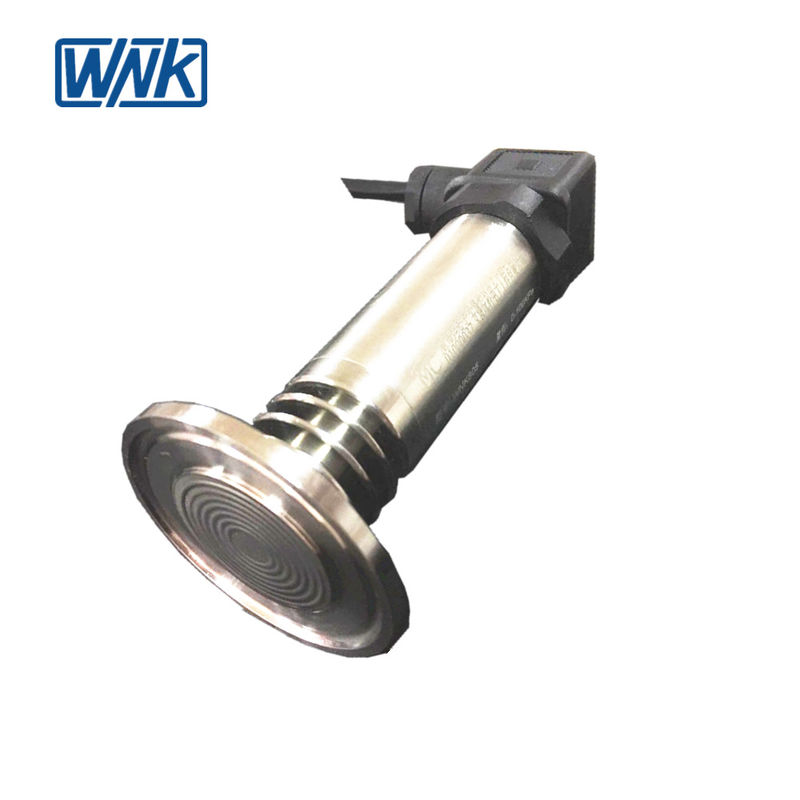

4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter

Food Grade Sanitary Flush Diaphragm Pressure Transmitter

Specifications

The Series WNK805 Sanitary Pressure Transmitter is designed to meet the applications in food, dairy, beverage and pharmaceutical processing, liquid level control, and sanitary pipelines. The unit is fully sealed to withstand high pressure wash-down in Clean-in-Place and Sterilize-in-Place installations.

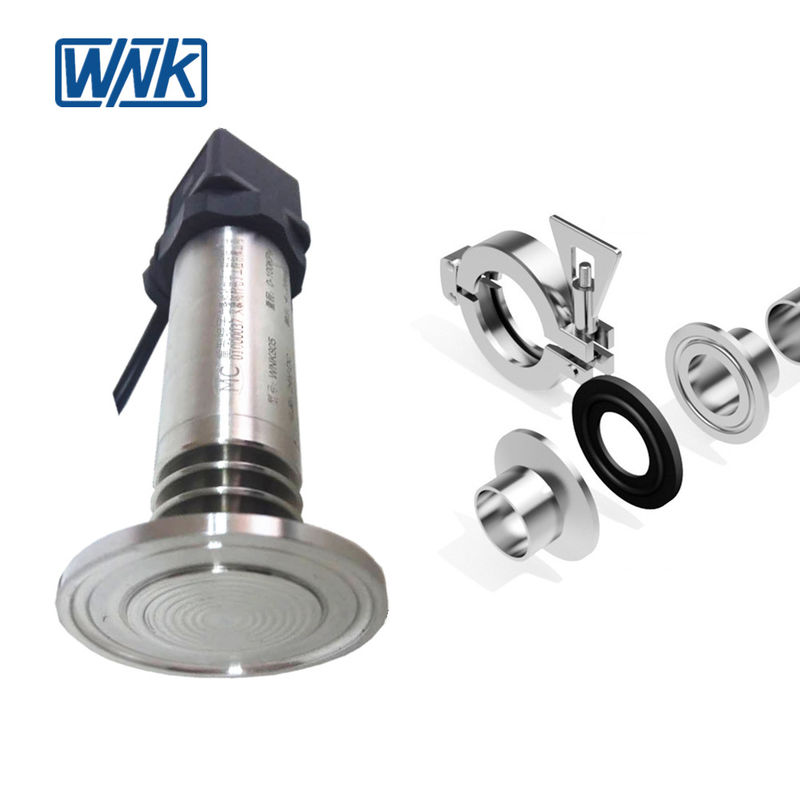

Tri-clamps are one of the most common types of pipe connections in the food, beverage, biotech, and pharmaceutical industries. This type of connection consists of a gasket compressed between two tri-clamp ferrules or flanges which are mechanically compressed in place with a clamp. Tri-clamp fittings are available in a variety of sizes, can be constructed from either steel or plastic, and can be either permanent or temporary. The clamp itself also comes in a variety of designs for ease of disassembly and cleaning.

It is therefore essential to select the right type of tri-clamp fitting to ensure the connection operates effectively in a given application. Choosing the right size and type of fitting can help minimize or eliminate contamination, bacterial growth, leaks, and deterioration of the connection material.

High Temperature Sanitary Clamp Flush Type Pressure Transmitter

Applicable media

Liquid, Gas, Steam

Pressure measurment

Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure

Pressure range

0-0.2 ...100kPa, 0-0.2 ...1000kpa, 60 MPa

Output signals

Typical output 4...20mA, 0.5...4.5VDC, For option: 1-5V, 0-5V, 0-10V DC

Accuracy

0.25%, 0.5%, 1.0%FS

Stability

±0.25% FS/year

Zero drift

50% of full range span.

Max overload

200% of sensor range

Display

LED (Optional)

Housing material

304SS, 316L

Mechanical connection

Clamp,Flush and Flange

Power supply

Non-explosion: 10.5~45V DC

EEX ia:10.5~30 V DC

Ambient temperature

-40~85℃

Process temperature

-40~85℃

Features

- Standard ranges from vacuum to 60Mpa

- Accuracy up to ±0.25%

- 4-20 mA 2-wire output signal, others available

- Highly resistant to pressure spikes and vibration

- Stainless steel case and wetted parts

- Full range of process and electrical connections

- Assemble to diaphragm seals for special applications

- Suitable for gas, liquid, steam pressure measurement

- Intelligent digital circuit with precise temperature characteristic compensation

- Tantalum sensor contact for option for pressure measurement with corrosive media

Tags：

digital pressure sensor

sanitary pressure transducer

sanitary pressure transmitter

Gửi yêu cầu của bạn trực tiếp đến chúng tôi

High Temperature Sanitary Clamp Flush Type Pressure Transmitter
Applicable media	Liquid, Gas, Steam
Pressure measurment	Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Pressure range	0-0.2 ...100kPa, 0-0.2 ...1000kpa, 60 MPa
Output signals	Typical output 4...20mA, 0.5...4.5VDC, For option: 1-5V, 0-5V, 0-10V DC
Accuracy	0.25%, 0.5%, 1.0%FS
Stability	±0.25% FS/year
Zero drift	50% of full range span.
Max overload	200% of sensor range
Display	LED (Optional)
Housing material	304SS, 316L
Mechanical connection	Clamp,Flush and Flange
Power supply	Non-explosion: 10.5~45V DC
Power supply	EEX ia:10.5~30 V DC
Ambient temperature	-40~85℃
Process temperature	-40~85℃
