macro 30KPA Electronic Differential Pressure Flow Transmitter

macro 30KPA Electronic Differential Pressure Flow Transmitter

30KPA electronic differential pressure transmitter

30KPA differential pressure flow transmitter

macro differential pressure level sensor

Nguồn gốc:

Hợp Phì, TRUNG QUỐC

Hàng hiệu:

WNK

Chứng nhận:

CE

Số mô hình:

WNK268/WNK808B

Liên hệ với chúng tôi
Yêu cầu Đặt giá
Product Details
Số mô hình:
WNK268/WNK808B
Loại áp suất:
Áp suất đo, áp suất chênh lệch
Phương tiện truyền thông:
Không khí, khí đốt
Tín hiệu đầu ra:
4- 20mA
Phạm vi áp suất:
-100Kpa ~ 60MPa
Sự chính xác:
0,2%, 0,5% FS
Nhiệt độ hoạt động:
-40~85oC
Nhiệt độ làm việc:
-10~70℃
Trọng lượng tịnh:
347,5g
Nguồn gốc:
Trung Quốc
Làm nổi bật:

30KPA electronic differential pressure transmitter

,

30KPA differential pressure flow transmitter

,

macro differential pressure level sensor

Payment & Shipping Terms
Số lượng đặt hàng tối thiểu
1 mảnh
Giá bán
negotiable
chi tiết đóng gói
hộp
Thời gian giao hàng
5-8 ngày làm việc
Điều khoản thanh toán
T/T, Western Union, PayPal, thẻ tín dụng
Khả năng cung cấp
2000 miếng mỗi tuần
RELATED PRODUCTS
Liên hệ với chúng tôi
Liên hệ ngay
Product Description

4-20mA Differential Pressure Transmitters For Gas Differential Pressure Measurement

Product Description



Intelligent Macro Differential Pressure Transmitter
Applicable media
Gas, Steam
Pressure Measurement
Gauge pressure, Differential pressure
Pressure range
-10Pa~100Pa, -100kPa~+100kPa
Accuracy
0.2%, 0.5%
Stability
0.8%F.S./Year
Maximum static pressure
70 KPa
Max overload
250% of sensor range
Output signals
4~20mA
Housing material
Aluminum14
Induct Pressure Connection:
M 8x1 female or Ø 8 dowel connection

Power Supply
Non-explosion: 10.5~45V DC
EEX ia:10.5~30 V DC
Ambient temperature
-40~85℃
Compensation temperature
-10~70℃
Working temperature
-10~70℃





WNK808B intelligent pressure transmitter is assembled with aluminum housing and stress isolation technology. Integrated structure design lead to compact layout. With intelligent compensation technology, it is suitable for wind pressure,wind speed & flow measurement. It is widely used in various industrial fields as well as intelligent building and other construction projects, such as power plant boiler primary air,secondary air measuring, mine ventilation,indoor ventilation, boiler air, pressure of fan, air duct pressure, Metro wind pressure and environment wind pressure test.



Application


It is the best micro pressure measurement equipment for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.



Product Show

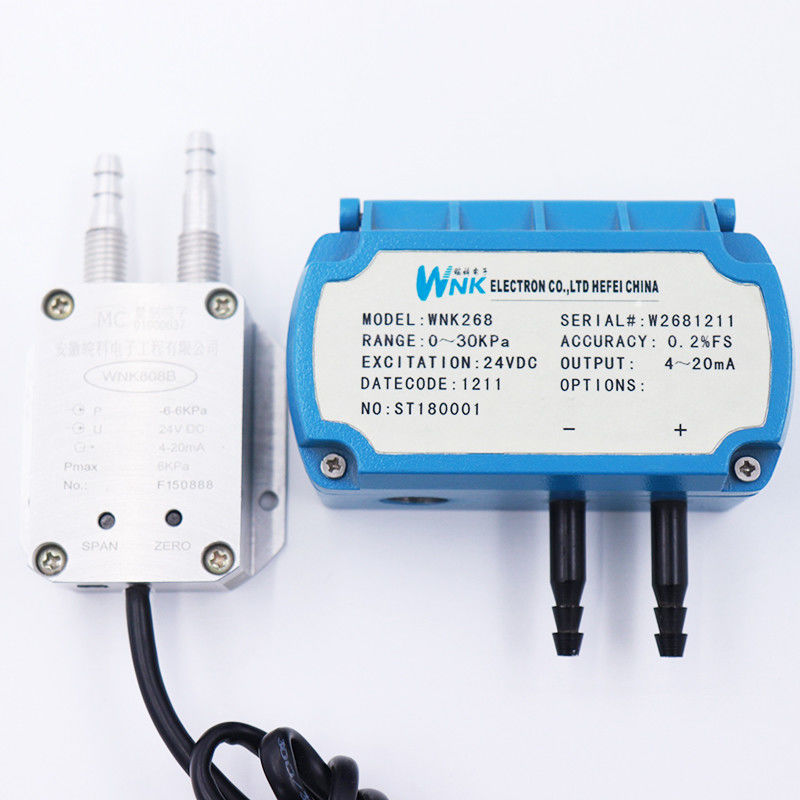

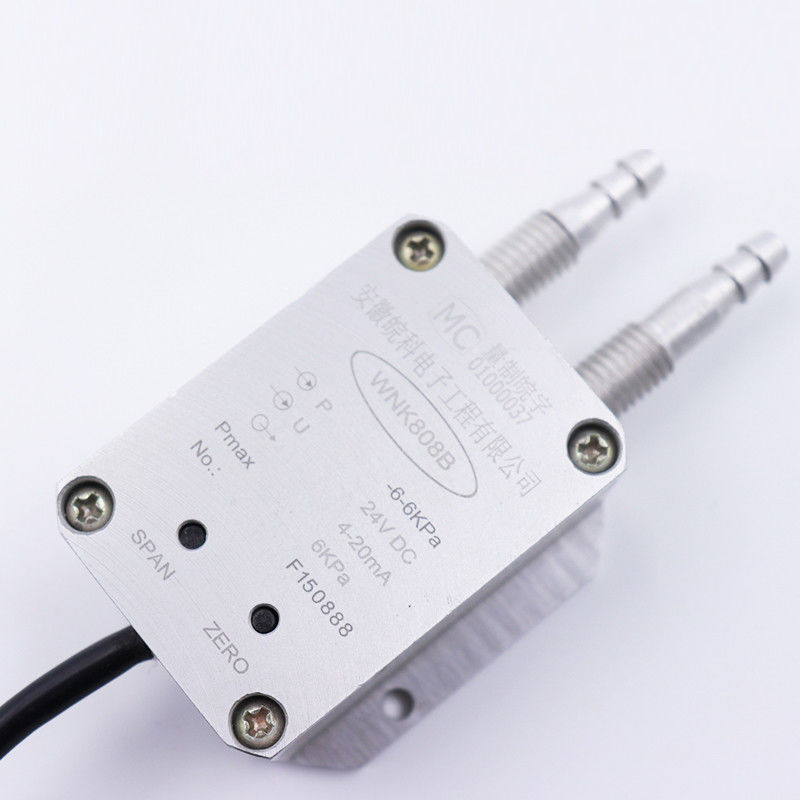

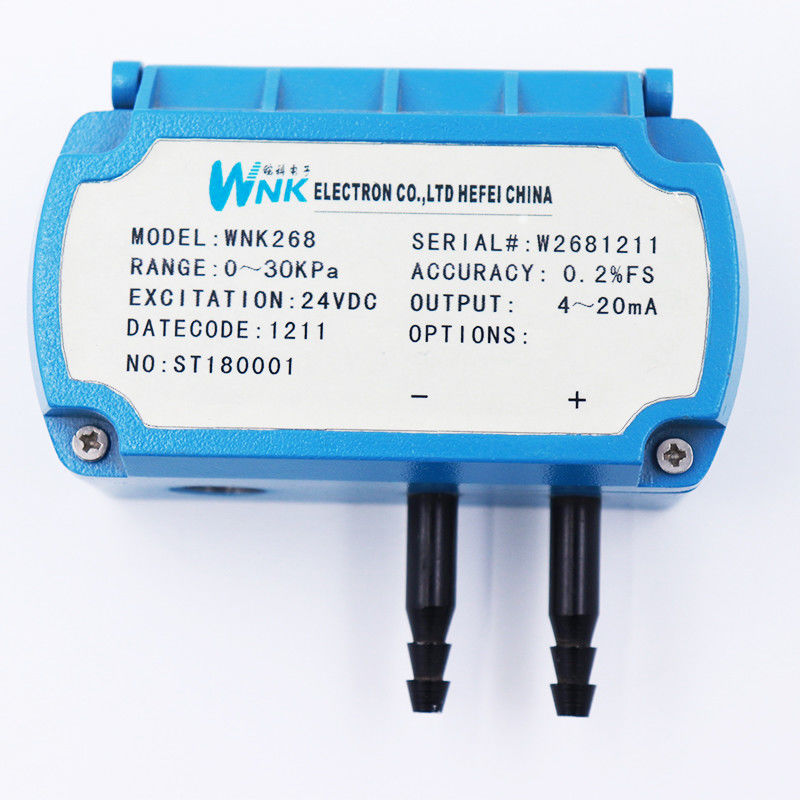

macro 30KPA Electronic Differential Pressure Flow Transmitter 0macro 30KPA Electronic Differential Pressure Flow Transmitter 1macro 30KPA Electronic Differential Pressure Flow Transmitter 2macro 30KPA Electronic Differential Pressure Flow Transmitter 3

macro 30KPA Electronic Differential Pressure Flow Transmitter 4macro 30KPA Electronic Differential Pressure Flow Transmitter 5

macro 30KPA Electronic Differential Pressure Flow Transmitter 6
macro 30KPA Electronic Differential Pressure Flow Transmitter 7






Company Information

macro 30KPA Electronic Differential Pressure Flow Transmitter 8



Exhibition

macro 30KPA Electronic Differential Pressure Flow Transmitter 9





Certification

macro 30KPA Electronic Differential Pressure Flow Transmitter 10




FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
