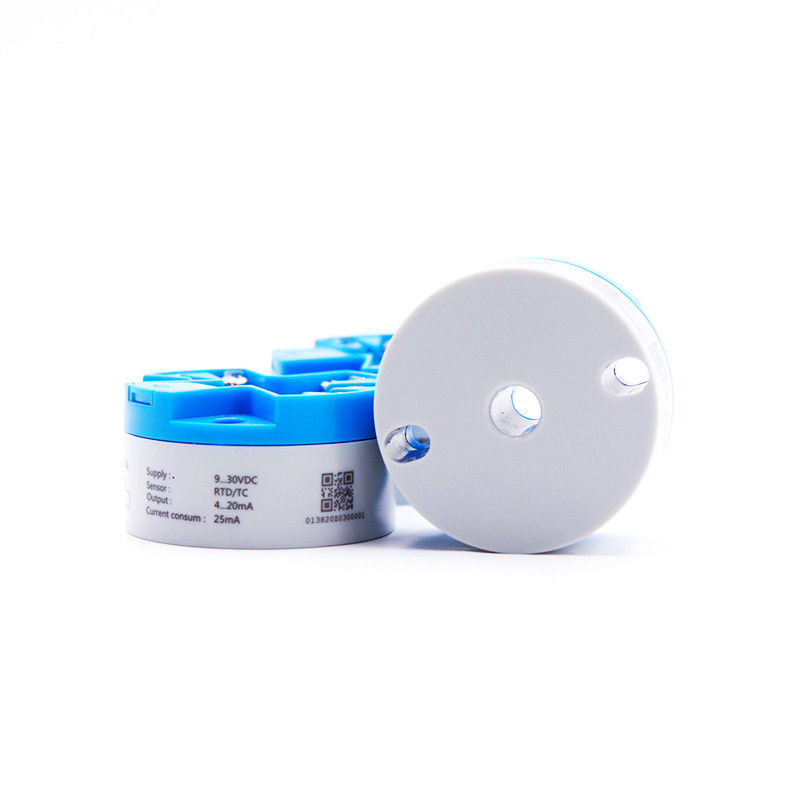

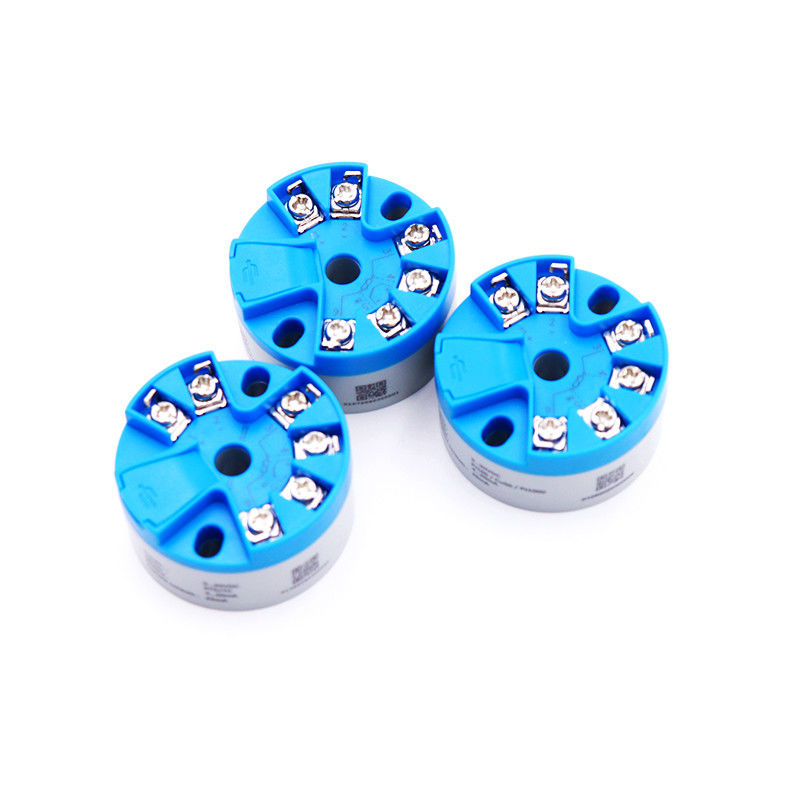

Thermocouple 60HZ 33mm PT100 Temperature Transmitter

4-20mA/Hart Resistance Type PT100 Smart Temperature Transmitter Module

WNK65 head-mount temperature transmitter is universal input type transmitter. It is suitable for four types of thermal resistors including PT100, PT1000, Cu50, Cu100, eight types of thermocouple including E, J, B, K, N, R, S, T type, minivolt signal of -10~100mV and -100~1000mV andresistive signal of 0~400Ω and 0~4000Ω. Isolation voltage is DC1000V.

WNK65 temp transmitter has output of 4~20mA and 4~20mA+Hart. And it supports software calibration with high cost performance.


• Output signal 4-20mA with HART protocol digital communication ( two-wire );
• Communicator or PC configuration and debugging software can do remote management;
• Internal code end compensation accuracy: ±0.5ºC
• Damp 0-64 seconds adjustable;
• Stability: ±0.2%/year;
• Woring ambient temperature range: -40ºC~+85ºC;
• Anti mechanical vibration: 10~60HZ,0.21mm sine wave;
• Anti radio frequency interference: IEC61000-4-3, 20V/M,80~1000MHZ
• Supply power:DC9V~32V;
• Dimensions: φ44mm;
• Mounting hole distance: 33mm；

2. Hardware components

2.1 Power

1. Supplying power range is DC9V~32V, connected from port 1 and 2.
2. Inlay opposite direction voltage protection circuit, misconnetion of power will cause no damage.

Note: Never connect 24V with sensor port! It will cause permanent damage of transmitter!

2.2 Wiring ports diagram

2.3 Sensor connection ports
