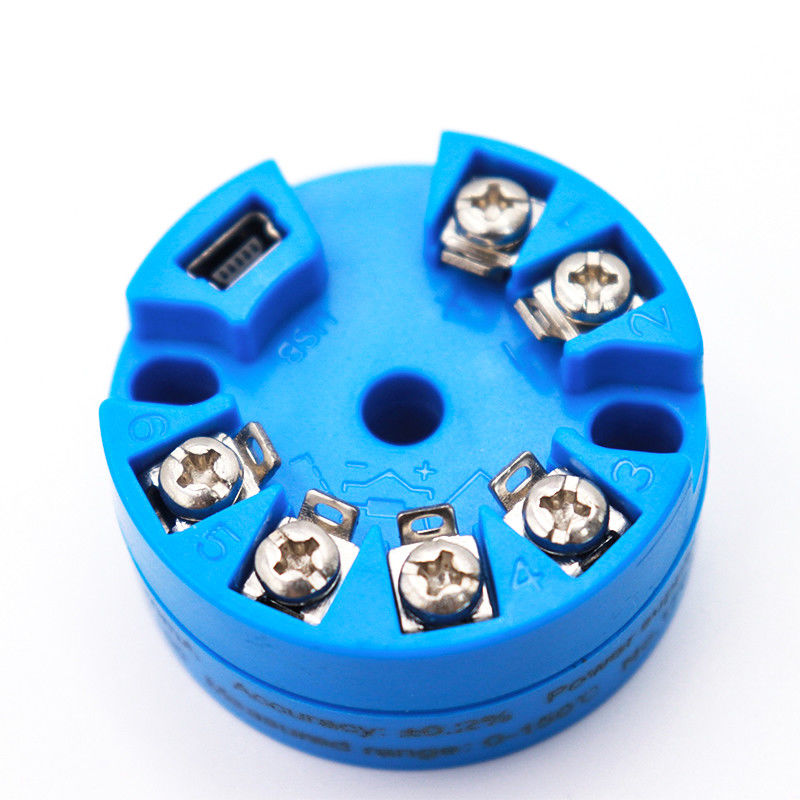

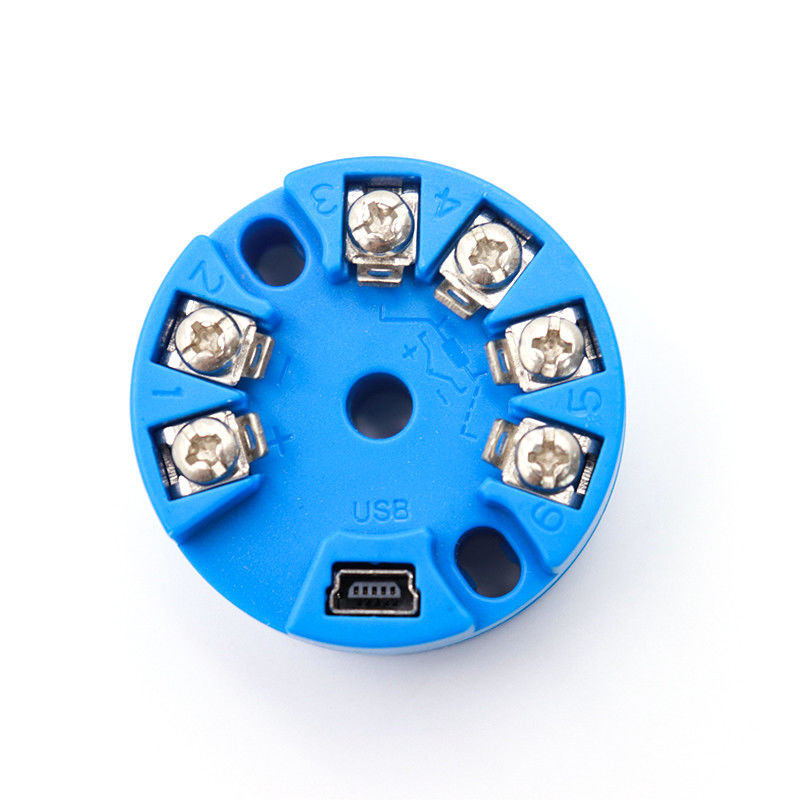

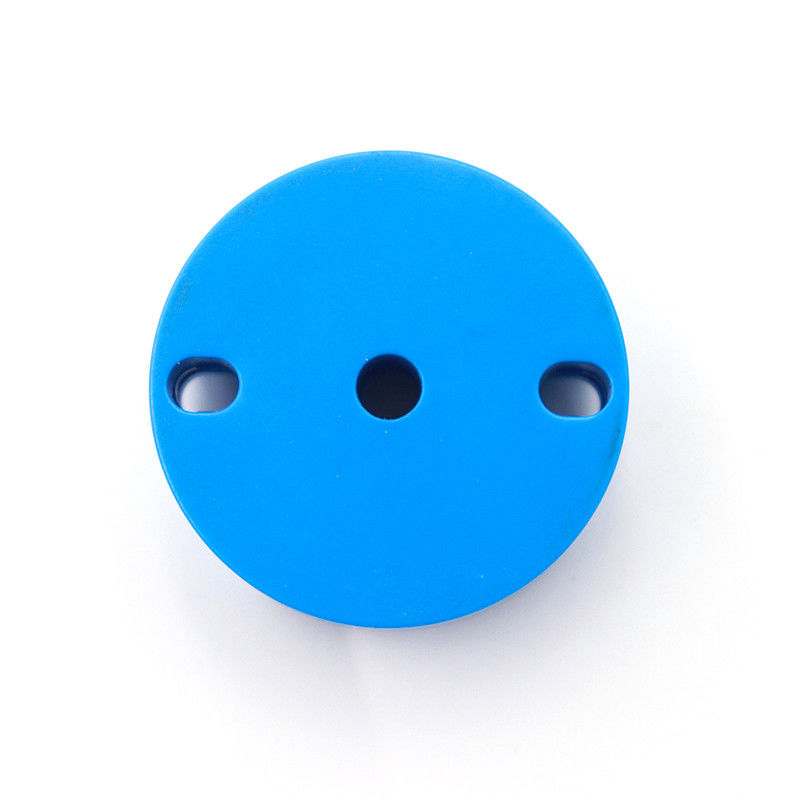

RTD 20mA Hart Resistance Pt100 Temperature Sensor

4-20mA/Hart Resistance Type PT100 Smart Temperature Transmitter Module

Product Description

Universal Input Isolation Smart Temperature Transmitter
WNK65 is suitable for four types of thermal resistors including Cu50, Cu100, PT100, PT1000 and eight types of thermocouple including E, J, B, K, N, R, S, T type. And it supports measurement of minivolt signal of -10~100mV and-100~1000mV, and resistive signal of 0~400Ω and 0~4000Ω. Isolation voltage is DC1000V.

1. Supply power:DC9V~32V;
2. Output signal 4-20mA with HART protocol digital communication ( two-wire ), HART communication does not influent 4-20mA
analog output;
3. Communicator or PC configuration and debugging software can do remote management;
4. Code end compensation of thermalcouple can choose internal temperature sensor, external temperature sensor, fixed temperature
value and forbide code end compensation;
5. Internal code end compensation accuracy: ±0.5ºC
6. Damp: 0-64 seconds adjustable;
7. Data refreshing frequency: 4times/second;
8. Stability: ±0.2%/year;
9. Woring ambient temperature range: -40ºC~+85ºC;
10. Dimensions: φ44mm;
11. Mounting hole distance: 33mm;
12. Anti mechanical vibration: 10~60HZ,0.21mm sine wave;
13. Anti radio frequency interference: IEC61000-4-3, 20V/M,80~1000MHZ

Company Infromation

FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.

Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
