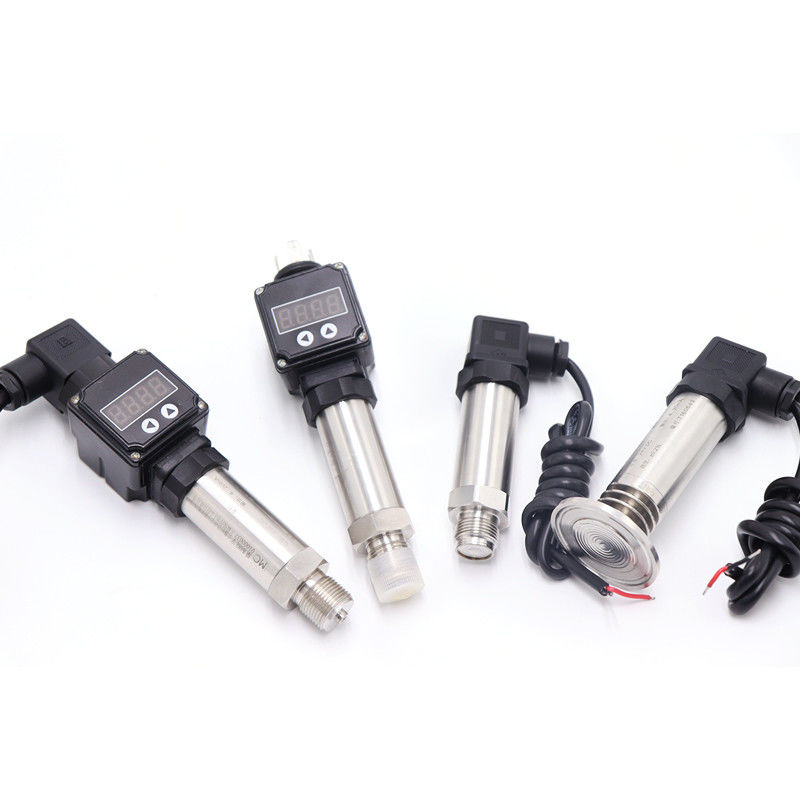

Intrinsically Safe Smart Type Pressure Transmitter Gas Pressure Transmitter

Hirschman Tri-clamp Sanitary Pressure Transmitter 4~20mA for Food Medical application

WNK has 13-year professional research, developing and producing experience. Its WNK805 compact pressure transmitter uses high accuracy and high stability chips, each pressure transmitter is well temperature compensated.  WNK805 has high accuracy of 0.2%FS, SS316L diaphragm, outputs of 4~20mA, 0~10V, 0~5V and other analog outputs.

Sanitary type WNK805 is specially designed for food and medical application. It has standard 50.5mm and 64mm outer diameter, connecting with process sanitary pipe directly and easily. Sanitary clamp type pressure transmitter is widely used in food, pharmaceutical, wine making, fermentation and other industries. It is divided in normal sanitary, high temperature cooling type, digital display types.

With a team of R&D engineers, we offer OEM, ODM and customization services.

Features:

• High accuracy ±0.2%FS
• Optional 4~20mA, 0~5V, 1~5V, 0~10V and other outputs
• Tri-clamp dimensions of DN25 and DN50;
• SS304 housing and SS316L measuring diaphragm;
• Various electrical connectors including DIN43650 (hirschman), M12, direct cable outlet and others
• CE, Explosion proof, ISO9001(2015) certificate
• Medium temperature range -30℃ ~85℃ ; with cooling element, the best medium temperature is 120 Deg C;
• High protection: IP65
• OEM, ODM and customization

Application fields:

1. Food hygiene industry；

2. Paper industry；

3. Sewage level measurement；

4. Beverage tank level measurement；

5. Pipeline level measurement；

6. Pharmaceutical and biological products processing

Detailed Technical Info:

Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
