Water heater application pressure sensor/transducer I2C output
Product Description
| Applicable media | Liquid, gas and steam |
| Pressure range00 | 0-15Mpa |
| Cell | Ceramic capacitive pressure sensor |
| Pressure measurment | Gauge Pressure and sealing pressure |
| Output | 4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C |
| Power supply | 24VDC/12VDC/5VDC/3.3V |
| Accuracy(linearity,Hysteresis and Repeatability) | 0.5%FS-1%FS |
| Compensation temperature | -20~85ºC |
| Ambient temperature | -40~125ºC |
| Working temperature | -40~125ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~85ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~85ºC) |
| Electrical connection | Parkard, Cable outlet, M12, mini DIN43650 |
| Mechanical connection | G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation |
| Housing material | 304 stainless steel(316SS for inner core) |
| Protection | IP65 |
Application in water heater:
A sensor is an instrument that can sense the water temperature and water level, and transform the price of the water temperature and pressure sensor into a changed electrical signal. In the history of the development of solar water heaters, the water temperature and water level sensor has always played a pivotal role.
The intelligence and humanity of the water heater are inseparable from the water temperature and water level sensor. It is the guarantee for the intelligent control of the entire water heater. Water temperature and water level sensors from scratch, from simple to complex, from short to long life, are inseparable from the efforts of solar energy professionals.

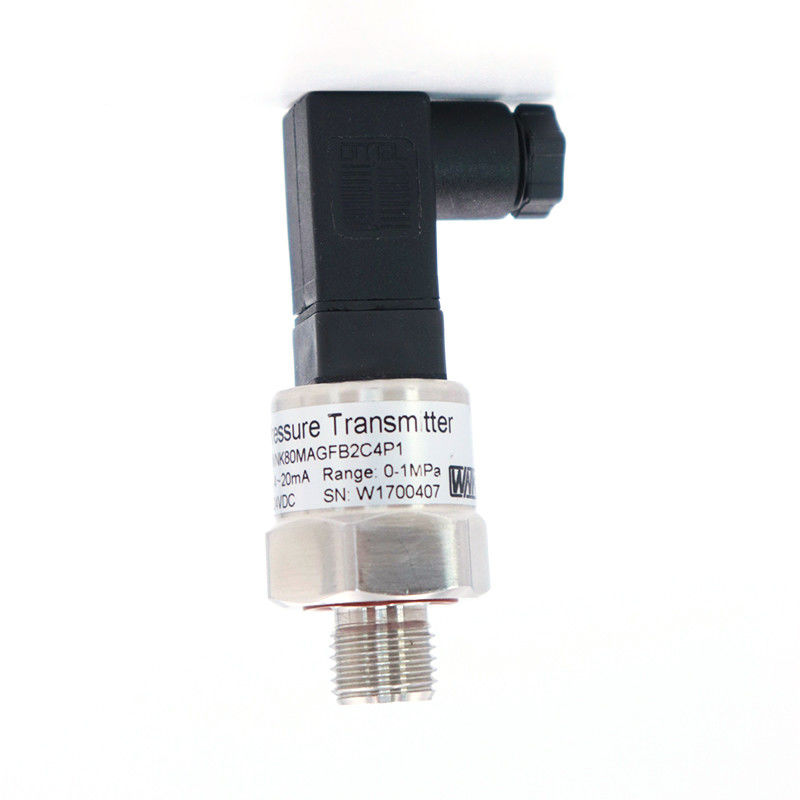

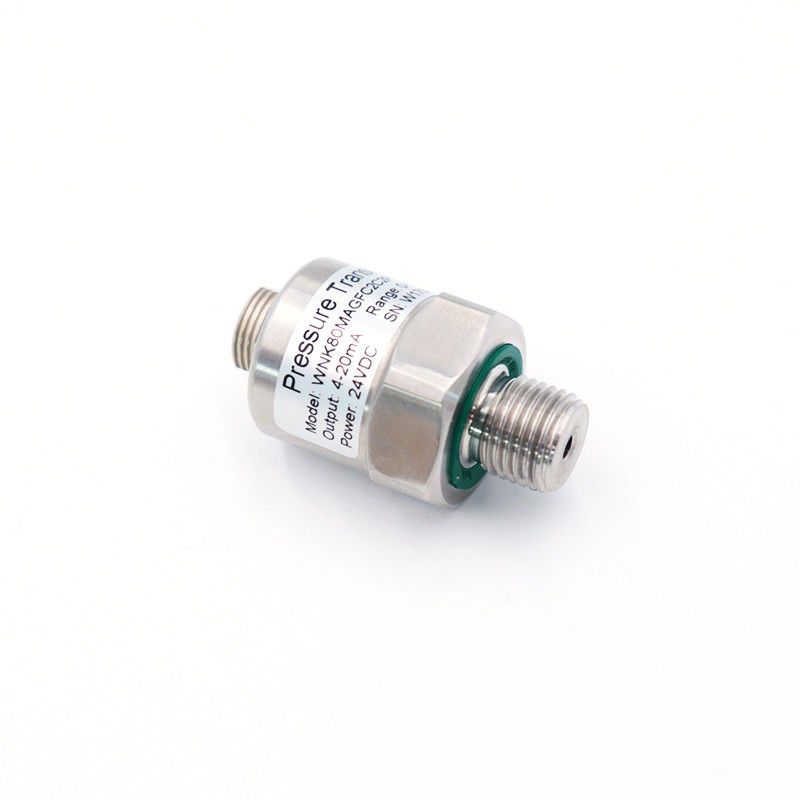

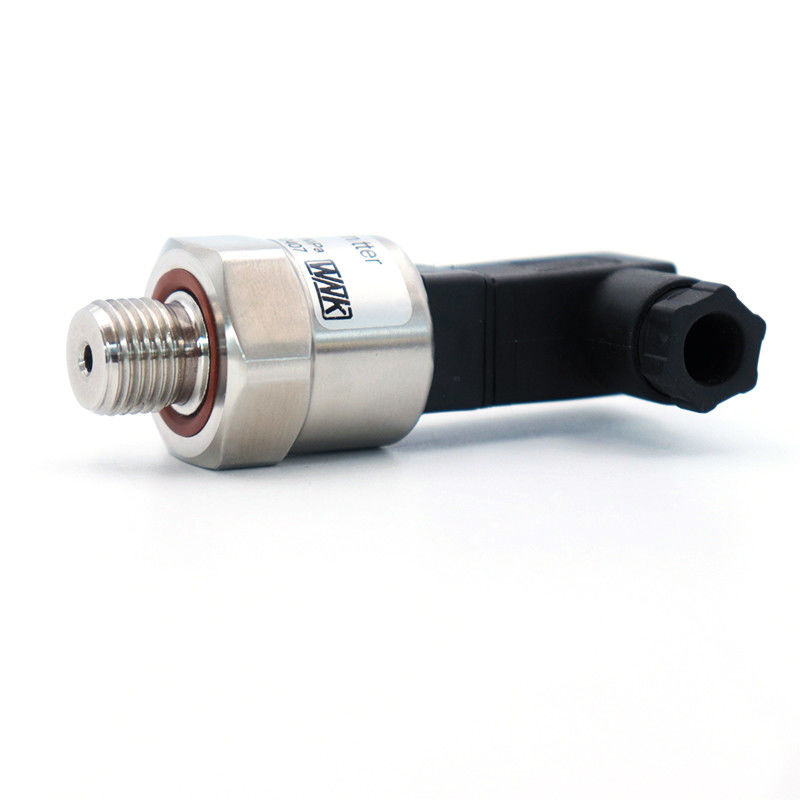

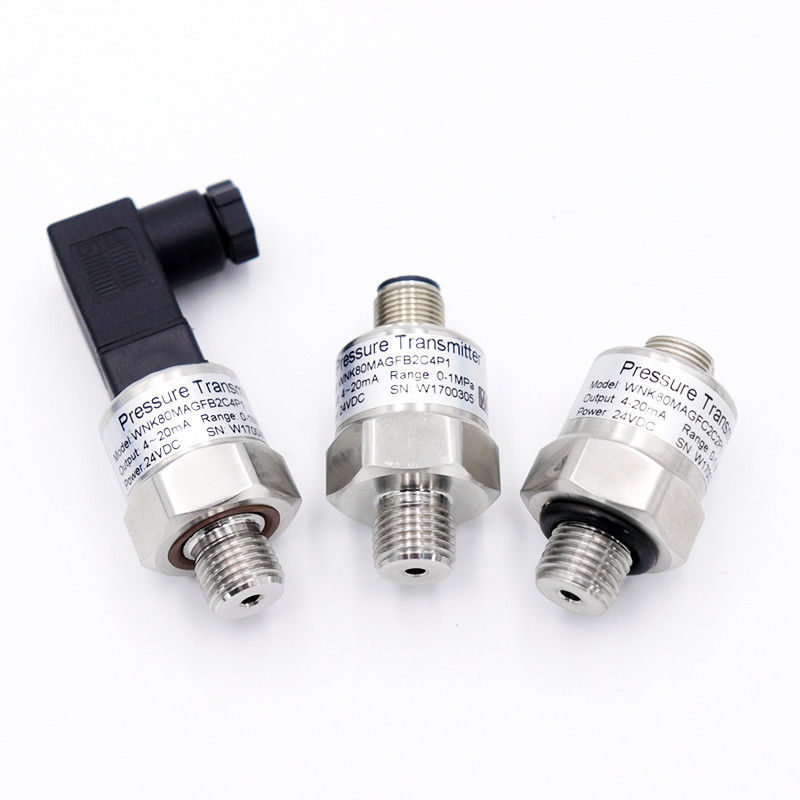

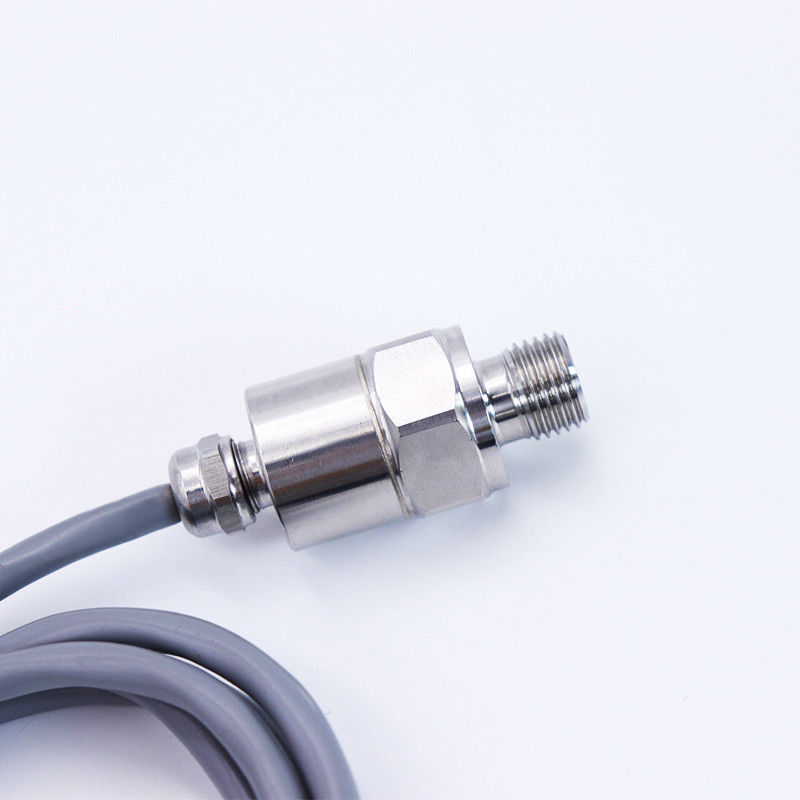

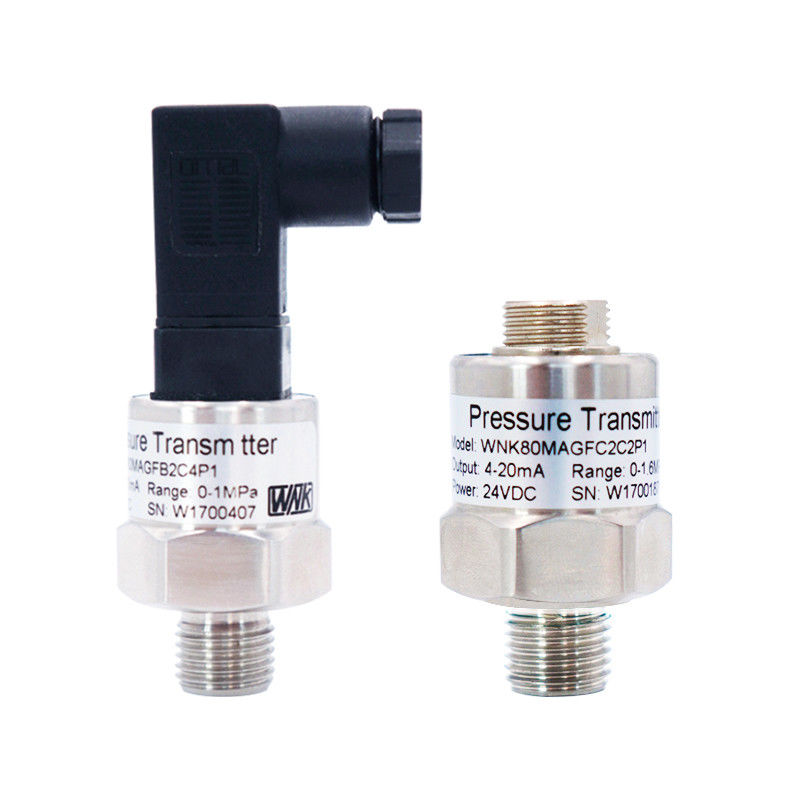

Product display:
Company introduction:
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
