Nguồn gốc:
Trung Quốc
Hàng hiệu:
WNK
Chứng nhận:
CE&UL
Số mô hình:
WNK80MA

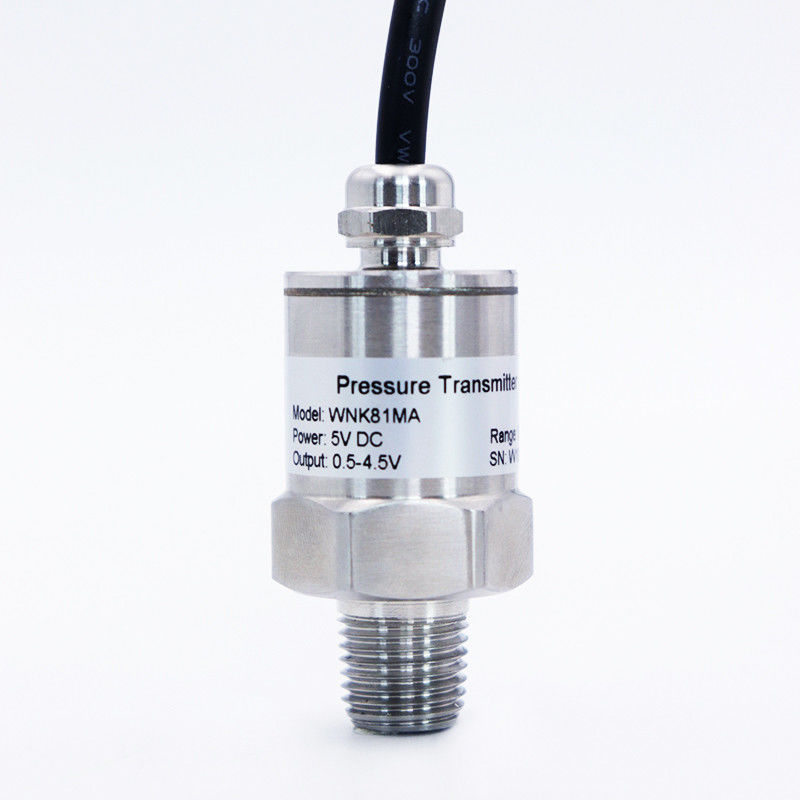

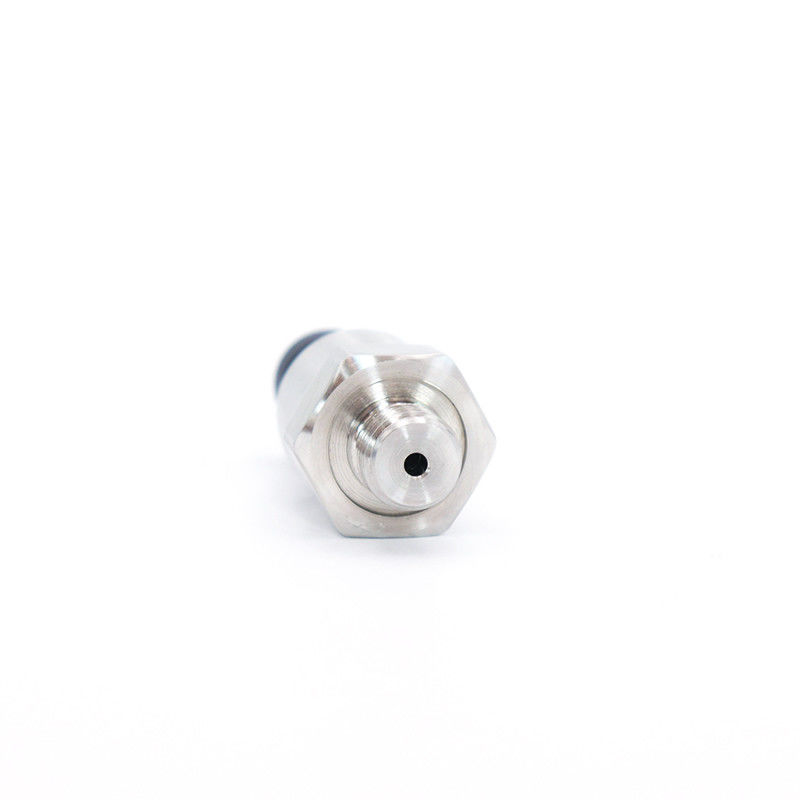

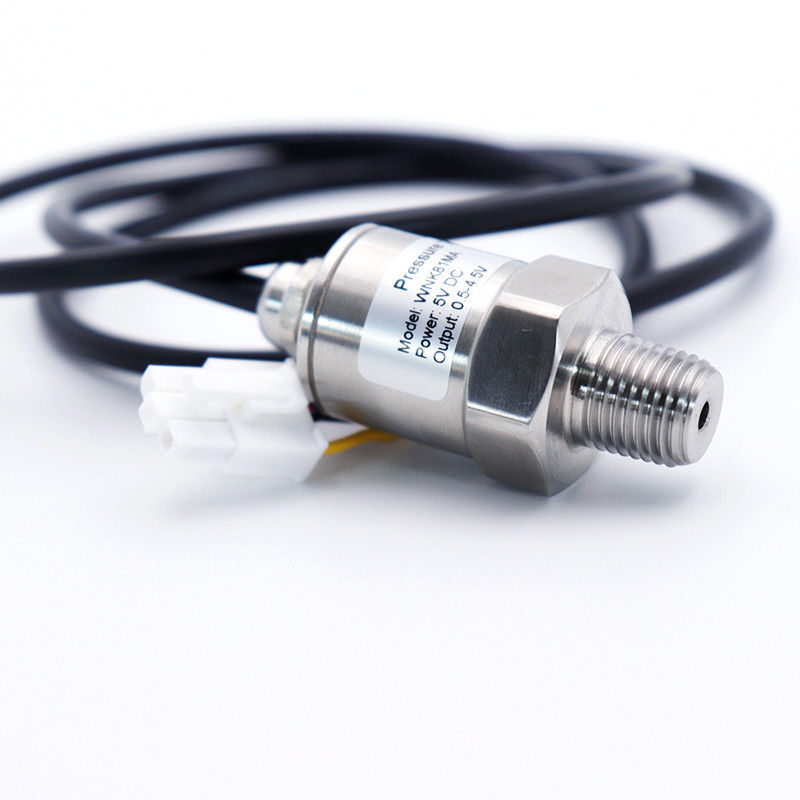

Smart beer barrel pressure sensor diffused silicon liquid level transducer
WNK81MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement, with high output and wide range.
Product Description
| Applicable media | Liquid, gas and steam |
| Pressure range | -100KPa-70Mpa |
| Cell | Diffused silicon pressure sensor |
| Pressure measurment | Gauge Pressure, absolute pressure and sealing pressure |
| Output | 4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C |
| Power supply | 24VDC/12VDC/5VDC/3.3V |
| Accuracy(linearity,Hysteresis and Repeatability) | 0.5%F.S. |
| Compensation temperature | -20~85ºC |
| Ambient temperature | -40~125ºC |
| Working temperature | -40~125ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~85ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~85ºC) |

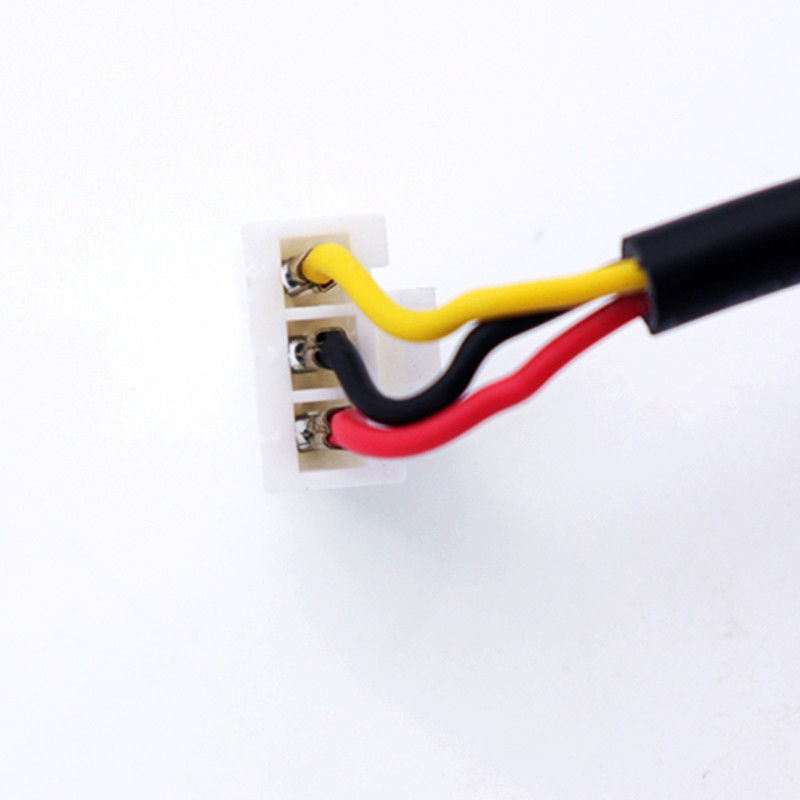

| Electrical connection | Parkard, Cable outlet, M12, mini DIN43650 |
| Mechanical connection | G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation |
| Housing material | 304 stainless steel(316SS for inner core) |
| Protection | IP65 |
Application:
WNK81MA is solution for below applications:
Pressure measurement of gas, vapor or liquid in various areas;
Liquid level, volume or mass measurement;
Integrated in a variety of user-defined solutions;
Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;
Sensors used in smart beer barrel!
It turns out that beer kegs can also become so smart!
The so-called smart beer keg refers to a temperature sensor and a pressure sensor device installed in the beer keg, which monitors and adjusts the temperature in the beer keg in real time and keeps the air pressure in the keg constant. These two are the key indicators to ensure the freshness and killing power of beer. It can let consumers know the temperature and pressure of liquor in the barrel in real time, and the safety valve configured in the smart barrel can better ensure the safety of the barrel in transportation and extreme weather.
Company introduction:
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
