Nguồn gốc:
Trung Quốc
Hàng hiệu:
WNK
Chứng nhận:
CE
Số mô hình:
WNKSLS
|

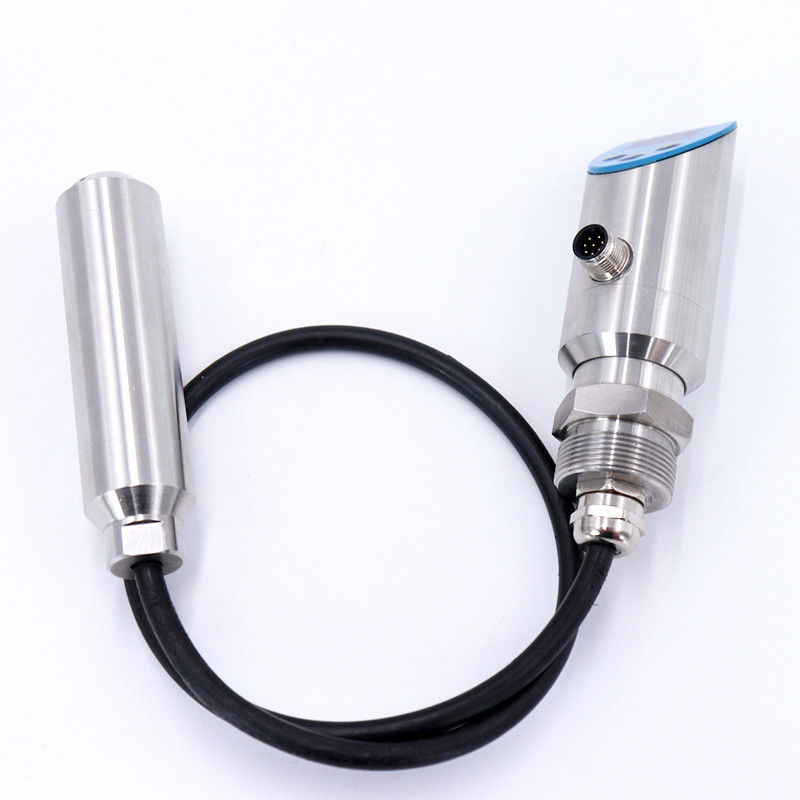

Smart Electronic Level Switch with OLED Display
|
|
|
Model No.
|
SLS
|
|
Measuring range
|
0…1mH2O to 100mH2O
|
|
Accuracy
|
≤0.5%FS
|
|
Supply power
|
12...30VDC
|
|
Temperature error within rated temp range
|
±0.02%FS/℃ (Zero/full span)
|
|
Long-term stability
|
±0.3%FS/year
|
|
Analog output accuracy
|
±0.2%FS
|
|
Output configurations
|
switching+voltage+ communication: 2×PNP + 0V~5VDC/10VDC + MODBUS
|
|
switching+current+ communication: 2×PNP + 0mA/4mA~20Madc + MODBUS
|
|
|
Switching current
|
1.0A(Max.)
|
|
Switching type
|
normally open , normally closed
|
|
Switching respond time
|
<10ms
|
|
Switching delay
|
0.00s~1000.0s
|
|
Switching motion mode
|
delay or windows mode
|
|
Analog signal output and maximum ohmic load RL
|
Current output: 0/4…20mA,20…4/0mA RL≤0.5kΩ
|
|
Voltage output: 0…5/10V,5/10…0V RL>10kΩ
|
|
|
Screen display
|
OLED
|
|
Switching indicator
|
2X red LED
|
|
Displaying pressure units
|
psi,bar,mbar,Pa,kPa,MPa
|
|
Working temperature
|
-30℃~80℃
|
|
Media temperature
|
-30℃~80℃
|
|
Storage temperature
|
-40℃~80℃
|
|
Electromagnetism compatible
|
GB/T 17626.2/3/4-2006
|
|
Shock resistance
|
≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
|
|
Vibration resistance
|
≤50g/11ms(IEC 60068-2-27-2008)
|
|
IP rating
|
IP65
|
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
