Nguồn gốc:
An Huy, Trung Quốc
Hàng hiệu:
WNK
Chứng nhận:
ISO,Exia
Số mô hình:
WNK808B
Băng hình
Băng hình

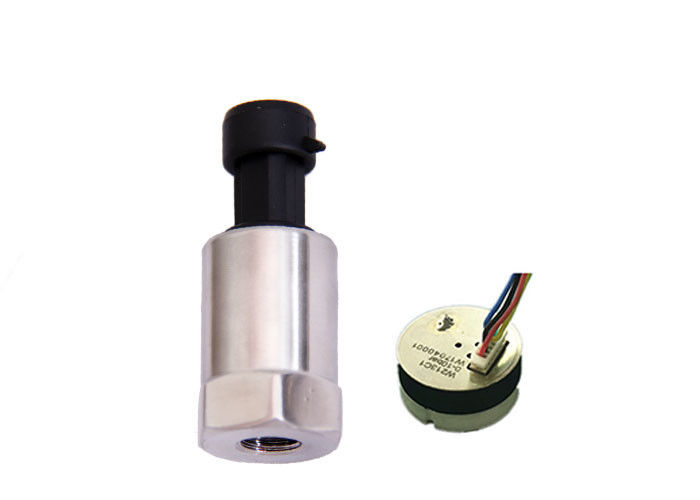

4~20ma Low Pressure Differential Air Pressure Sensors Pressure Transmitter For Wind And Dry Gas
WNK268 ( WNK808B ) Wind Pressure Sensor uses silicon pressure sensor element and aluminum alloy housing structure. Two pressure ports with M10 thread, and can be installed directly in the instrument chassis or connected through the pressure tube. Choose products millivolts, standard voltage, current, frequency signal, to install and easy to use, widely used in the field of wind pressure control of the boiler air supply, mine ventilation, electricity, coal industry.
Specifications
| Pressure range | -100KPa……0~1KPa……100KPa |
| Overload capacity | 150% |
| linearity | <±0.1%FS |
| Repetition | <±0.05%FS |
| Delay | <±0.05%FS |
| Input impedance | 0.6~6KΩ |
| Compensation temperature | -10°C~+70°C |
| Working temperature | -40°C~+85°C |
| Insulation resistance | >100MΩ/50V |
| Insulating strength | >500MΩ/500V |
| Pressure connection | The pagodas head with M10 thread |
| Electrical connection | Cable or connectors |
| Medium | Liquid compatible with 316 stainless steel |
| Protection Grade | IP65 |
| Explosion-proof Grade | ExiallCT5 |
Application
It is the best micro pressure measurement equipmenttextile for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.
