Nguồn gốc:
An Huy, Trung Quốc
Hàng hiệu:
WNK
Chứng nhận:
ISO
Số mô hình:
WNK-621
Industrial 4-20ma Hart Head Mounted Temperature Transmitter
Description

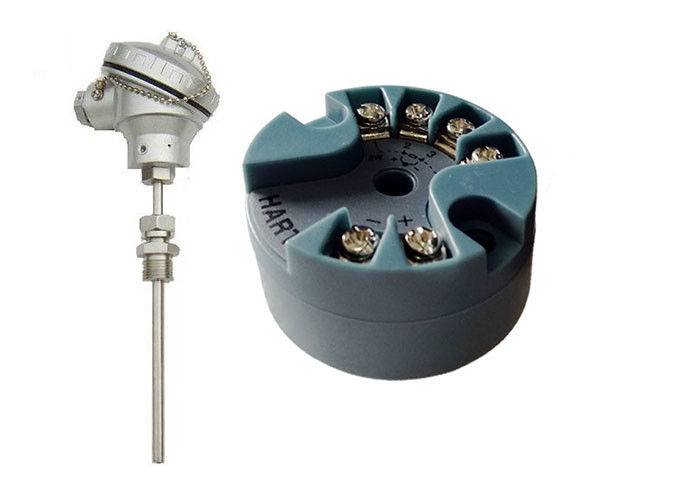

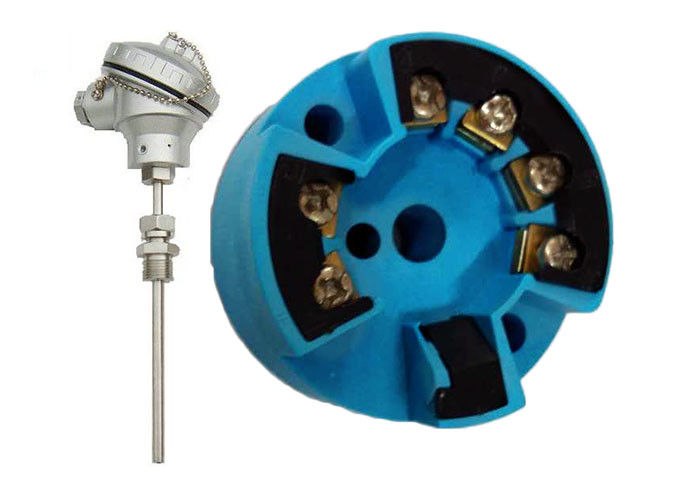

WNK temperature transmitter is installed into the top of the temperature transmitter. One side connected to the temperature probe and the other side connected to the circuitry. Compact and inexpensive one is available any time.
It specially designs for PT100. It inputs various RTD signal and converts this signal into 4-20mA standard current signal after linear processing. It has configurable measuring ranges and large ambient temperature range.
Benefits
Measures temperature with a linear output signal
High accuracy across entire ambient temperature range
Reduces plant noise
Slim design, ideal for upgrade of installed PT100 probes with a 4-..20mA signal
Rugged design, fully potted electronic
Main Sensors Accuracy Parameters
| Sensors type | Sensor range | Minimum range | Digit accuracy | D/A accuracy |
| 2,3,4- wire thermal resistor | ||||
| Cu50 | -50~150 ºC | 10 ºC | ±0.15 ºC | 0.01% |
| Cu100 | -50~150 ºC | 10 ºC | ±0.15 ºC | 0.01% |
| PT100 | -200~850 ºC | 10 ºC | ±0.15 ºC | 0.01% |
| PT1000 | -200~850 ºC | 10ºC | ±0.1 ºC | 0.01% |
| 2,3,4- wire resistor | ||||
| 400Ω | 0~400Ω | 10Ω | 0.01Ω | 0.01% |
| 4000Ω | -0~4000Ω | 10Ω | 0.01Ω | 0.01% |
| Voltage | ||||
| 100mV | -10~100 mV | 10 mV | 0.01 mV | 0.01% |
| 1000mV | -100~1000mV | 10 mV | 0.01 mV | 0.01% |
| Thermocouple | ||||
| B type | 150~1820ºC | 25ºC | ±1.0 ºC | 0.01% |
| E type | -200~1000ºC | 25ºC | ±0.4 ºC | 0.01% |
| J type | - 210~1200ºC | 25ºC | ±0.4ºC | 0.01% |
| K type | -200~1372ºC | 25ºC | ±0.4ºC | 0.01% |
| N type | -200~1300ºC | 25ºC | ±0.4ºC | 0.01% |
| R type | 0~1768ºC | 25ºC | ±0.8ºC | 0.01% |
| S type | 0~1768ºC | 25ºC | ±0.8ºC | 0.01% |
| T type | -200~400ºC | 25ºC | ±0.4 ºC | 0.01% |
