Stainless Steel Oem Pressure Sensor Absolute Micro 4-20ma 0.5-4.5V I2C

Stainless Steel Oem Pressure Sensor Absolute Micro 4-20ma 0.5-4.5V I2C

electronic pressure sensor

oem pressure sensor

0.5-4.5V I2C Oem Pressure Sensor

Nguồn gốc:

Hợp Phì, TRUNG QUỐC

Hàng hiệu:

WNK

Chứng nhận:

CE, SGS, ISO9001

Số mô hình:

WNK80MA

Liên hệ với chúng tôi
Yêu cầu Đặt giá
Product Details
Nguồn điện:
5V DC 9-32V
Phạm vi:
0-10MPA
Độ chính xác tuyến tính:
0,25%FS, 0,5%Fs, 1,0%FS
Cổng áp lực:
G1/4, NPT1/8 khác
Loại cảm biến:
Cảm biến điện dung gốm
Kết nối điện:
Hirschman nhỏ, dây dẫn cáp
Bảo vệ chống xâm nhập:
IP67 IP65
Làm nổi bật:

electronic pressure sensor

,

oem pressure sensor

,

0.5-4.5V I2C Oem Pressure Sensor

Payment & Shipping Terms
Số lượng đặt hàng tối thiểu
5 mảnh
Giá bán
negotiable
chi tiết đóng gói
Đóng gói xứng đáng với đường biển hoặc đóng gói đáng giá trên không
Thời gian giao hàng
7-10 ngày làm việc
Điều khoản thanh toán
T/T, Western Union, MoneyGram
Khả năng cung cấp
5000 chiếc mỗi tháng
RELATED PRODUCTS
Liên hệ với chúng tôi
Liên hệ ngay
Product Description

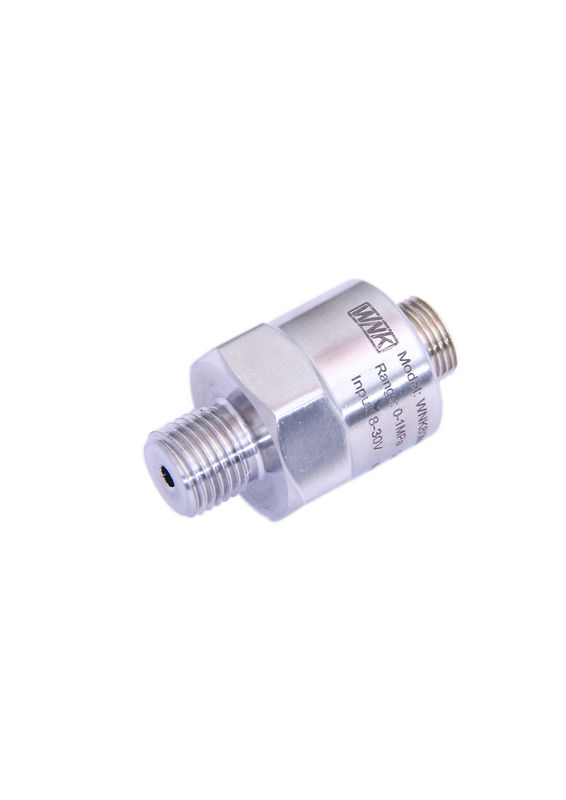

Stainless Steel Absolute Micro Compact Pressure Sensor 4-20ma 0.5-4.5V, I2C

Stainless Steel Oem Pressure Sensor Absolute Micro 4-20ma 0.5-4.5V I2C 0


Description

This product is high integration, small size, high precision, good stability, fast response speed, low power consumption, good consistency, resistance to overload ability strong impact and interference. With the function of over-voltage and over-current protection and the full temperature linear temperature compensation of this product which widely used in engine pipe of vehicle and ship, central air conditioner and freezing device, water treatment engineering, building water supply, industrial process detection and control, hydraulic pneumatic control engineering and other fields.



Features :
1. Temperature range: -20 to 85℃
2. Wide operation temperature range -40~125℃
3. High performance ceramic capacitive pressure sensor
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available
5. Small dimensions, dimension customizble
6. Optional packard, M12, Small Hirschman connectors
7. OEM, ODM, customization service available
8. Process connector: G1/4, M12*1.5, 1/4NPT, 7/16-20UNF female


Application:

For oil,fuel,diesel,gas,water or air pressure.Can be used in oil tank,gas tank,diesel tank etc.
