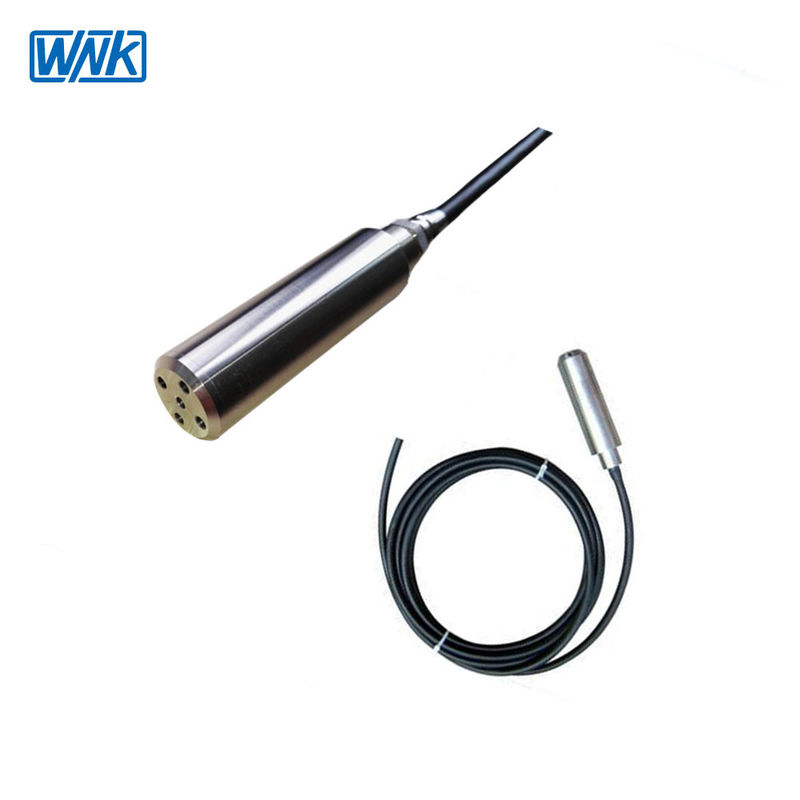

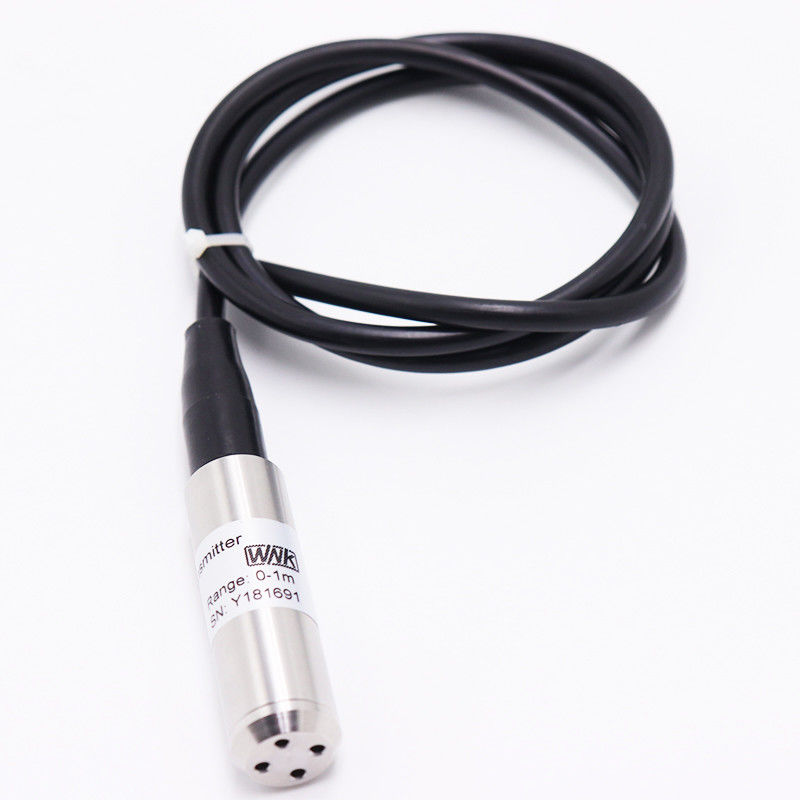

Submersible Water Pressure Sensor For Tank And Pipe , Liquid Level Sensor

Submersible Water Pressure Sensor Pressure Transmitter For Tank And Pipe

Product Description

Our WNK8010 liquid level sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.

Applications

• Water tank level measurement and control.

• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features

1.High accuracy 0.2%FS;
2.Wide application range 0-0.5~200m H2O;
3.Output 4~20mA, 0~10mA, 0~5V, 1~5V & customization;
4.High overload 150 times;
5.Stability 0.25%FS/Year;
6.Protection class IP68;
7.High cost effective with OEM &ODM

Specifications

Ordering Code
