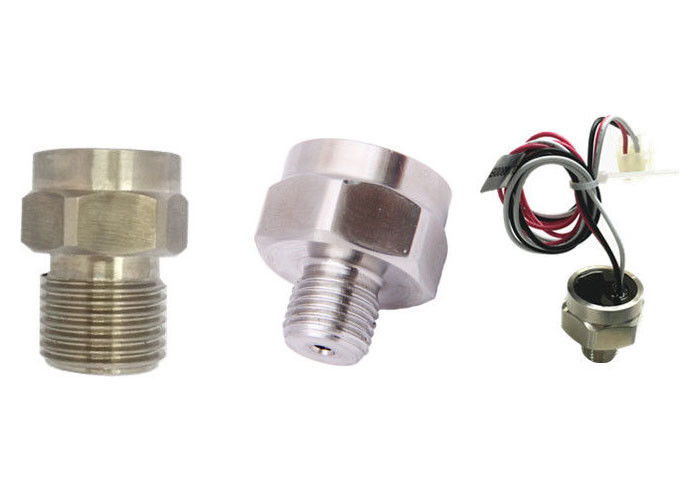

Digital I2C Pressure Sensor 2 x FS Overload For Pressure Level Monitoring

Digital I2C IOT Pressure Sensor For Pressure Level Monitoring

WNK80MA is a series of high performance compact pressure transmitter by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addition to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Features :

• 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available;
• Optional packard, M12, Small Hirschman connectors and direct cable outlet;
• Measuring medium temperature range: -20 to 85ºC;
• Wide operation temperature range -40~125ºC;
• OEM, ODM, customization service available;
• High performance ceramic capacitive pressure sensor or diffused silicon pressure sensor;
• Small and mini size, dimension customizble;

Detailed Technical Info:

Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
